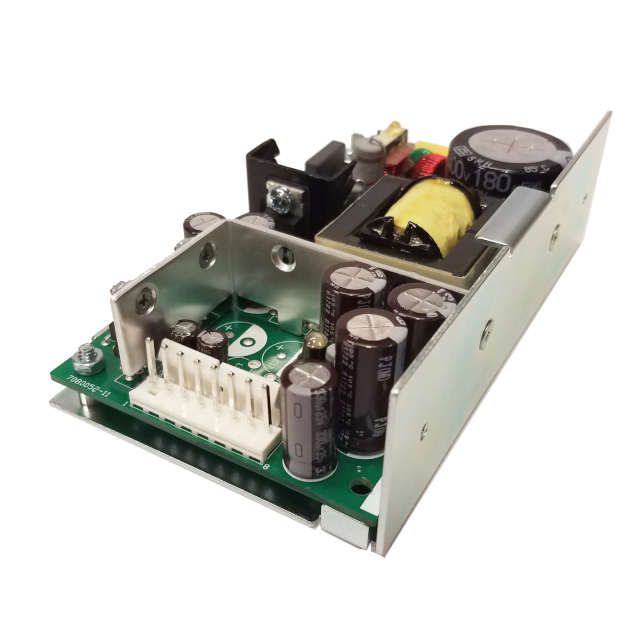

1010100CH

Integrated Power Designs

AC/DC CONVERTER 24V 45W

Search across all available documentation for this part.

Integrated Power Designs

AC/DC CONVERTER 24V 45W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1010100CH	1010100 Series

Applications	Industrial, ITE (Commercial)	Industrial, ITE (Commercial)
Approval Agency	CE, UKCA, TUV	CE, UKCA, TUV
Current - Output 1	2 A	2 A
Efficiency	70 %	70 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	130.8 mm	130.8 mm
Size / Dimension [x]	5.15 in	5.15 in
Size / Dimension [y]	82.6 mm	82.6 mm
Size / Dimension [y]	3.25 "	3.25 "
Size / Dimension [z]	1.56 in	1.56 in
Size / Dimension [z]	39.6 mm	39.6 mm
Standard Number	62368-1	62368-1
Type	Chassis	Enclosed, Chassis
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output 1	24 V	24 V

AC/DC CONVERTER 24V 45W

Part	Efficiency	Voltage - Output 1	Type	Approval Agency	Current - Output 1	Standard Number	Applications	Features	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Integrated Power Designs 1010100CHCO	70 %	24 V	Enclosed	CE, TUV, UKCA	2 A	62368-1	Industrial, ITE (Commercial)	Adjustable Output, Universal Input	240 VAC	100 VAC	1	82.6 mm	1.56 in	130.8 mm	39.6 mm	5.15 in	3.25 "	Chassis Mount	0 °C	50 °C
Integrated Power Designs 1010100CH	70 %	24 V	Chassis	CE, TUV, UKCA	2 A	62368-1	Industrial, ITE (Commercial)	Adjustable Output, Universal Input	240 VAC	100 VAC	1	82.6 mm	1.56 in	130.8 mm	39.6 mm	5.15 in	3.25 "	Chassis Mount	0 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Chassis AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
