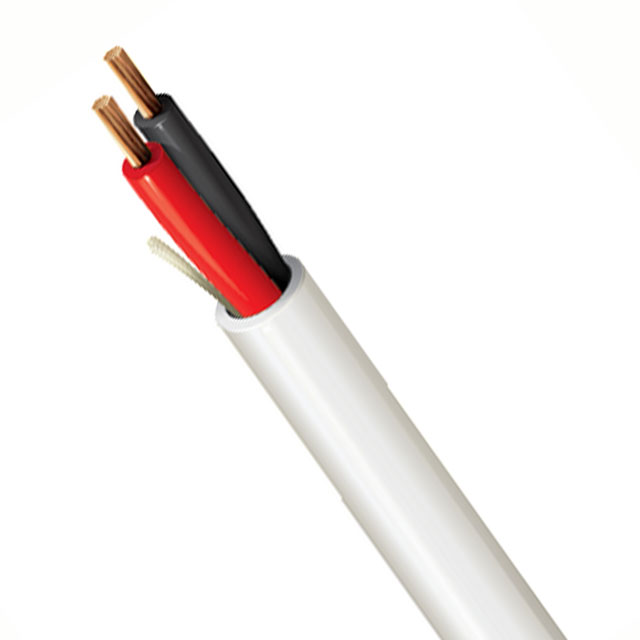

6200UE 877500

Active

Belden Inc.

CABLE 2COND 16AWG NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6200UE 877500

Active

Belden Inc.

CABLE 2COND 16AWG NATURAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6200UE 877500

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.176 in
Jacket (Insulation) Diameter [diameter]	4.47 mm
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Usage	Commercial Audio
Wire Gauge	16 AWG

6200UE Series

Part	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Ratings	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Material	Usage	Operating Temperature [Max]	Features	Length [x]	Length [x]
Belden Inc. 6200UE 010U250	3000 "	76.2 m	0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Black	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord
Belden Inc. 6200UE D151000	1000 ft	304.8 m	0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Blue	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord
Belden Inc. 6200UE 010U500			0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Black	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord	500 '	152.4 m
Belden Inc. 6200UE 877U1000	1000 ft	304.8 m	0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Natural	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord
Belden Inc. 6200UE 008U1000	1000 ft	304.8 m	0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Gray	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord
Belden Inc. 6200UE 8771000	1000 ft	304.8 m	0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Natural	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord
Belden Inc. 6200UE 009U500			0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP		16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord	500 '	152.4 m
Belden Inc. 6200UE 0041000	1000 ft	304.8 m	0.015 in	0.381 mm	300 V	Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Yellow	16 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.67 mm	0.184 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Tinned	Security Sound	75 ░C	Rip Cord
Belden Inc. 6200UE 877500			0.015 in	0.381 mm		Multi-Conductor	19 Strands	29 AWG	2	UL Style CMP	Natural	16 AWG		4.47 mm	0.176 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Copper Bare	Commercial Audio	75 ░C	Rip Cord	500 '	152.4 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.51
		1000	$ 0.49
		2500	$ 0.46
		5000	$ 0.44
		12500	$ 0.42

Description

General part information

6200UE Series

2 Conductor Multi-Conductor Cable Natural 16 AWG 500.0' (152.4m)
