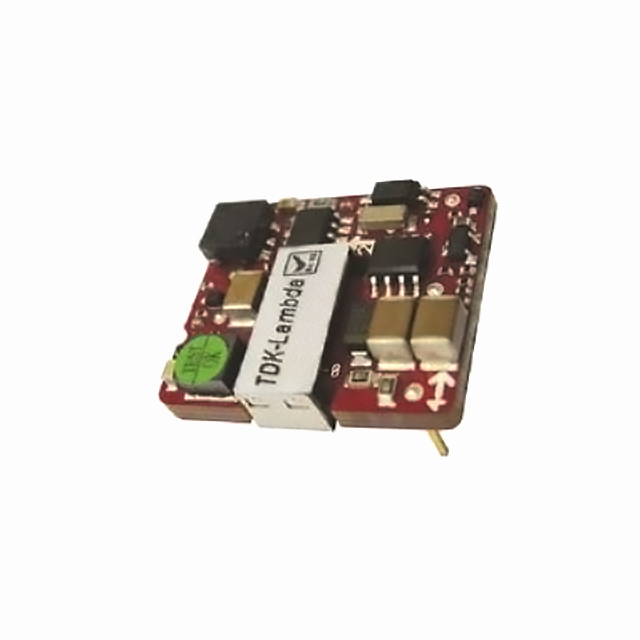

PXA15-48WS15/NT

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, 15 W, 1 OUTPUT, 15 V

Search across all available documentation for this part.

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, 15 W, 1 OUTPUT, 15 V

Technical Specifications

Parameters and characteristics for this part

Part	Type	Control Features	Power (Watts)	Mounting Type	Features	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs
TDK-LAMBDA PXA15-48S05/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	5 V	36 V	87 %	75 V	6-DIP Module	3 A	85 °C	-40 °C	2250 VDC	1
TDK-LAMBDA PXA15-48WS12/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	12 V	18 V	86 %	75 V	6-DIP Module	1.3 A	85 °C	-40 °C	2250 VDC	1
TDK-LAMBDA PXA15-24WS05/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	5 V	9 V	87 %	36 V	6-DIP Module	3 A	85 °C	-40 °C	2250 VDC	1
TDK-LAMBDA PXA15-24S12/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	12 V	18 V	87 %	36 V	6-DIP Module	1.25 A	85 °C	-40 °C	2250 VDC	1
TDK-LAMBDA PXA15-48WS15/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	15 V	18 V	86 %	75 V	6-DIP Module	1 A	85 °C	-40 °C	2250 VDC	1
TDK-LAMBDA PXA15-48WS3P3/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	3.3 V	18 V	85 %	75 V	6-DIP Module	4 A	85 °C	-40 °C	2250 VDC	1
TDK-LAMBDA PXA15-24WS3P3/NT	Isolated Module	Active Low Enable	15 W	Through Hole	Remote On/Off	ITE (Commercial)	3.3 V	9 V	85 %	36 V	6-DIP Module	4 A	85 °C	-40 °C	2250 VDC	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 1A 18V - 75V Input
