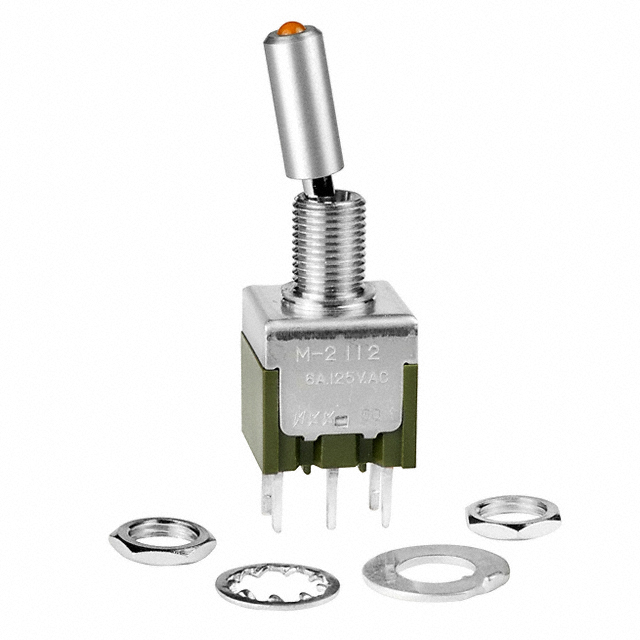

M2112LEW03

Obsolete

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT LIGHTED LEVER PC PINS 6A 250VAC 30VDC PC MOUNT WITH THREADS

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT LIGHTED LEVER PC PINS 6A 250VAC 30VDC PC MOUNT WITH THREADS

Technical Specifications

Parameters and characteristics for this part

Specification	M2112LEW03

Actuator Length [x]	14.7 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	2.1 VDC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)	Circuit	Current Rating (Amps)	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Features	Bushing Thread	Voltage Rating - AC	Voltage Rating - DC	Illumination	Switch Function	Electrical Life
NKK Switches M2112LEW02	Standard Round	LED Yellow	2.1 VDC	SPDT	3 A 6 A	Quick Connect - 0.062" (1.5mm)	55 °C	-10 °C	6.5 mm	14.7 mm	Epoxy Sealed Terminals	1/4-40	125 V	30 V	Illuminated	On-On	25000 Steps
NKK Switches M2112LEW03	Standard Round	LED Yellow	2.1 VDC	SPDT	3 A 6 A	PC Pin	55 °C	-10 °C	6.5 mm	14.7 mm	Epoxy Sealed Terminals	1/4-40	125 V	30 V	Illuminated	On-On	25000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
