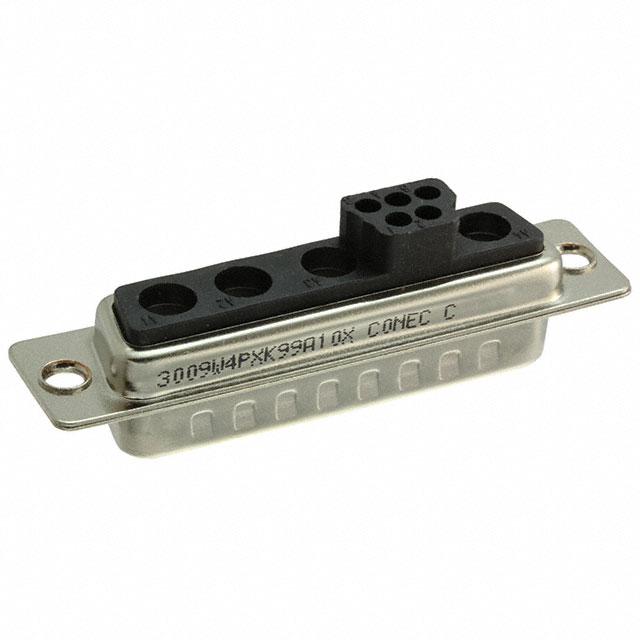

3009W4PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 9POS

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 9POS

Technical Specifications

Parameters and characteristics for this part

Specification	3009W4PXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B) - 9W4

Part	Connector Type	Shell Size, Connector Layout	Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Note	Connector Style	Flange Feature	Contact Type	Dielectric Material	Mounting Type	Number of Positions [custom]	Number of Positions	Number of Positions [custom]
Amphenol CONEC 3009W4PAR71AA0X	Male Pins Plug
Amphenol CONEC 3009W4PAM63A10X	Male Pins Plug
Amphenol CONEC 3009W4PAR71E20X	Male Pins Plug
Amphenol CONEC 3009W4PXK99A10X	Plug for Male Contacts	3 (DB B) - 9W4	Black	Grounding Indents	-55 °C	125 °C	2	Contacts Not Included	Combo D-Sub	Housing/Shell (Unthreaded)	Coax Power	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	4	9	5
Amphenol CONEC 3009W4PAM64A10X	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub, Combo Connector 9 (5 + 4 Coax or Power) Position
