EDS12SGNNTR04Q

Active

TE Connectivity Raychem Cable Protection

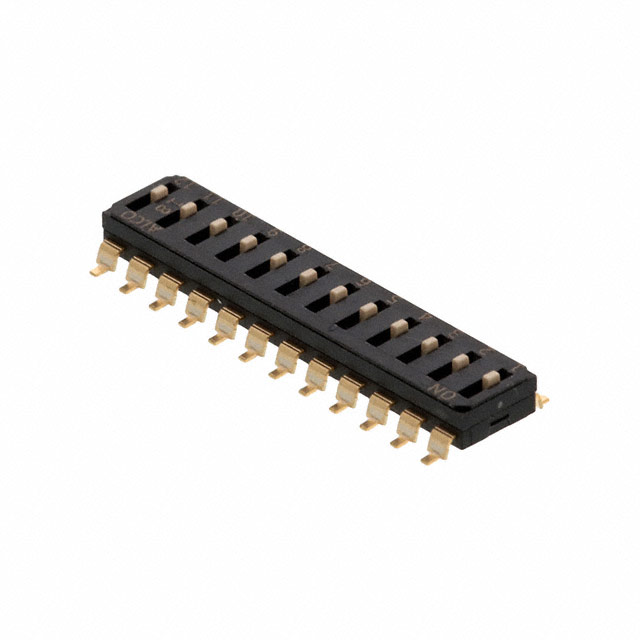

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EDS12SGNNTR04Q

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDS12SGNNTR04Q

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Nylon, Polyamide (PA)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	3.8 mm
Height Above Board	0.15 "
Length	30.38 mm
Length	1.196 in
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

EDS12 Series

Part	Number of Positions	Contact Finish	Circuit	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Body Material	Current Rating (Amps)	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Mounting Type	Voltage Rating	Actuator Type	Contact Material	Termination Style	Actuator Level	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
TE Connectivity Raychem Cable Protection EDS12SGRNTR04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	Gull Wing	Flush Recessed	3.4 mm	0.134 in
TE Connectivity Raychem Cable Protection EDS12SNRNTU04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	J Lead	Flush Recessed	3.45 mm	0.136 in
TE Connectivity Raychem Cable Protection EDS12SGRSTU04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	Gull Wing	Flush Recessed	3.4 mm	0.134 in
TE Connectivity Raychem Cable Protection EDS12SNRNTR04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	J Lead	Flush Recessed	3.45 mm	0.136 in
TE Connectivity Raychem Cable Protection EDS12SNNNTR04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	J Lead	Raised			0.152 in	3.85 mm
TE Connectivity Raychem Cable Protection EDS12SNRSTU04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	J Lead	Flush Recessed	3.45 mm	0.136 in
TE Connectivity Raychem Cable Protection EDS12SGNNTR04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	Gull Wing	Raised			0.15 "	3.8 mm
TE Connectivity Raychem Cable Protection EDS12SNRSTR04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	J Lead	Flush Recessed	3.45 mm	0.136 in
TE Connectivity Raychem Cable Protection EDS12SNNNTU04Q	12	Gold	SPST	0.1 in	Full	2.54 mm	2000 Cycles	Nylon Polyamide (PA)	25 mA	2000 Steps	85 °C	-20 C	30.38 mm	1.196 in	Surface Mount	24 VDC	Slide (Standard)	Copper Alloy	J Lead	Raised			0.152 in	3.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.42
		10	$ 2.87
		25	$ 2.66
		100	$ 2.37
		250	$ 2.20
	Digi-Reel®	1	$ 3.42
		10	$ 2.87
		25	$ 2.66
		100	$ 2.37
		250	$ 2.20
	Tape & Reel (TR)	900	$ 1.70
		1800	$ 1.63

Description

General part information

EDS12 Series

Dip Switch SPST 12 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
