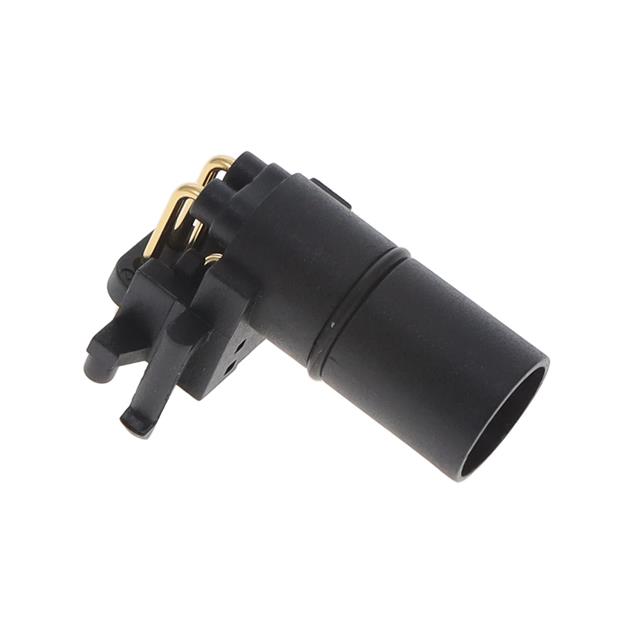

M12B-05PMMR-EE0001
ActiveAmphenol LTW
M12 B CODE 90 DIP, PLASTIC, M CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12B-05PMMR-EE0001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.69 | |
| 10 | $ 5.68 | |||
| 45 | $ 5.11 | |||
| 90 | $ 4.86 | |||
| 135 | $ 4.73 | |||
| 270 | $ 4.50 | |||
| 540 | $ 4.29 | |||
| 1035 | $ 4.09 | |||
| 2520 | $ 3.85 | |||
Description
General part information
M12B-05PMMR Series
5 Position Circular Connector Receptacle, Male Pins Solder
