TMC248-LA-X
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPOLAR 3-5.5V 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC248-LA-X
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPOLAR 3-5.5V 28QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC248-LA-X | TMC248 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Interface | SPI | SPI |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Pre-Driver - Half Bridge (4) | Pre-Driver - Half Bridge (4) |

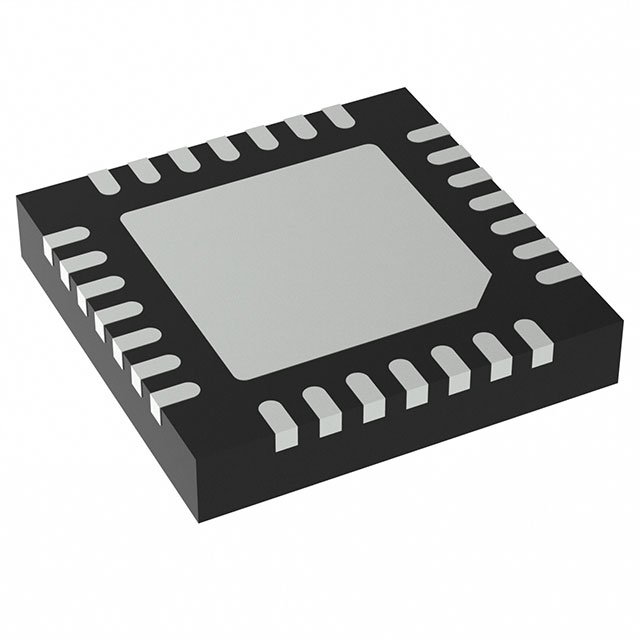

| Package / Case | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad |
| Step Resolution [Max] | 0.015625 | 0.015625 |
| Step Resolution [Min] | 1 | 1 |
| Supplier Device Package | 28-QFN (5x5) | 28-QFN (5x5) |
| Technology | HVCMOS | HVCMOS |
| Voltage - Load [Max] | 34 V | 34 V |
| Voltage - Load [Min] | 7 V | 7 V |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TMC248 Series
IC MTR DRVR BIPOLAR 3-5.5V 28QFN
| Part | Applications | Step Resolution [Max] | Step Resolution [Min] | Technology | Supplier Device Package | Mounting Type | Motor Type - Stepper | Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC248-LA-X | General Purpose | 0.015625 | 1 | HVCMOS | 28-QFN (5x5) | Surface Mount | Bipolar | Controller - Commutation, Direction Management | 150 °C | -40 °C | 7 V | 34 V | SPI | Pre-Driver - Half Bridge (4) | 5.5 V | 3 V | 28-VFQFN Exposed Pad |
Analog Devices Inc./Maxim Integrated TMC248-LA | General Purpose | 0.015625 | 1 | HVCMOS | 28-QFN (5x5) | Surface Mount | Bipolar | Controller - Commutation, Direction Management | 150 °C | -40 °C | 7 V | 34 V | SPI | Pre-Driver - Half Bridge (4) | 5.5 V | 3 V | 28-VFQFN Exposed Pad |
Description
General part information
TMC248 Series
Bipolar Motor Driver HVCMOS SPI 28-QFN (5x5)
