R141082161
ActiveRadiall USA, Inc.

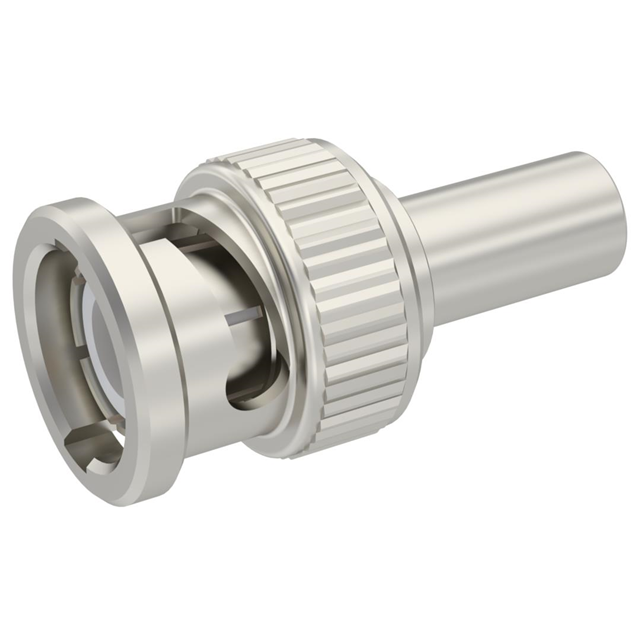

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, RG141, BRASS
Deep-Dive with AI
Search across all available documentation for this part.
R141082161
ActiveRadiall USA, Inc.
RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, RG141, BRASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R141082161 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 141 |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 1.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -35 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R1410821 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
