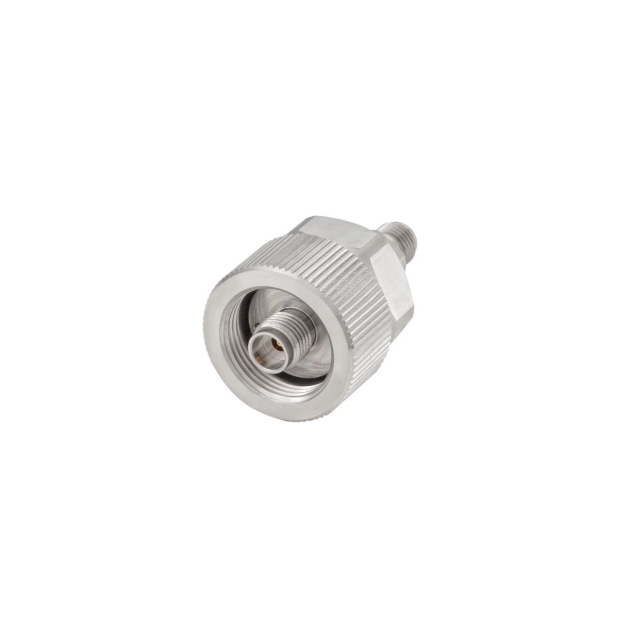

Specification	09KR102-K0AS3

Adapter Series	RPC-2.40 to RPC-2.92
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Between Series
Convert From (Adapter End) Jack Size	2.4 mm
Convert From (Adapter End) Type	Female Socket, APC-2.4, OS-50
Convert To (Adapter End)	Jack, Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Model	OS-2.9
Convert To (Adapter End) Size	2.92 mm
Convert To (Adapter End) Type	Jack
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Threaded
Frequency - Max	40 Gbps
Impedance	50 Ohm
Insertion Loss	0.32 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Style	Straight

09KR102 Series

Part	Body Material	Dielectric Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Insertion Loss	Center Contact Material	Style	Frequency - Max	Adapter Series	Convert From (Adapter End) Jack Size	Convert From (Adapter End) Type	Impedance	Center Contact Plating	Fastening Type	Conversion Type	Mounting Type	Adapter Type	Convert To (Adapter End) Precision	Convert To (Adapter End) Type	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Size	Center Gender	Convert To (Adapter End) Gender
Rosenberger 09KR102-S0AS3	Stainless Steel	Polyetheretherketone (PEEK)	500 cycles	-40 °C	85 °C	0.32 dB	Beryllium Copper	Straight	40 Gbps	RPC-2.92 to RPC-2.92	2.4 mm	APC-2.4 Female Socket OS-50	50 Ohm	Gold	Threaded	Between Series	Free Hanging (In-Line)	Plug to Jack	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Female Male
Rosenberger 09KR102-K0AS3	Stainless Steel	Polyetheretherketone (PEEK)	500 cycles	-40 °C	85 °C	0.32 dB	Beryllium Copper	Straight	40 Gbps	RPC-2.40 to RPC-2.92	2.4 mm	APC-2.4 Female Socket OS-50	50 Ohm	Gold	Threaded	Between Series	Free Hanging (In-Line)	Jack to Jack		Jack	OS-2.9	Female Socket Jack	2.92 mm	Female	Female Socket
