PM-F25-R
ActivePanasonic Industrial Automation Sales
SENSOR OPTICAL 6MM MOD CABLE 3M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-F25-R |
|---|---|
| Current - Supply | 15 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector |
| Package / Case | Wire Leads, Module |
| Response Time | 20 µs |
| Sensing Distance | 0.236 in |
| Sensing Distance | 6 mm |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.00 | |
| 10 | $ 15.46 | |||
Description
General part information
PM-F25 Series

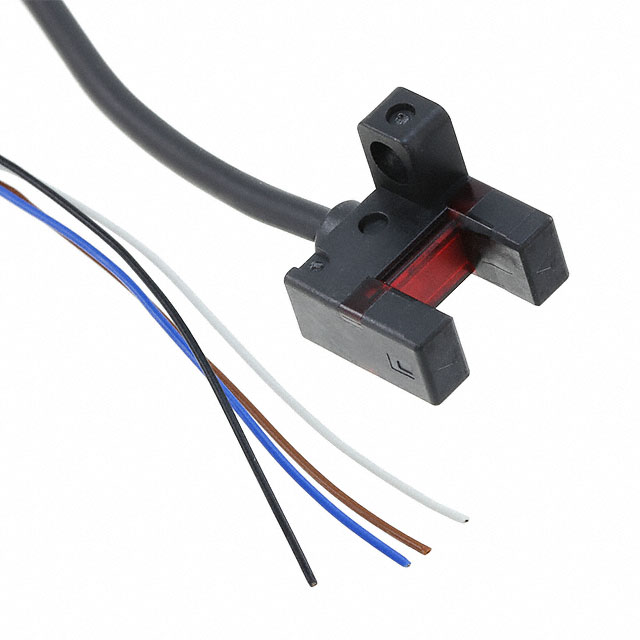

Optical Sensor Through-Beam 0.236" (6mm) Module, Wire Leads
Documents
Technical documentation and resources
No documents available
