Technical Specifications
Parameters and characteristics for this part

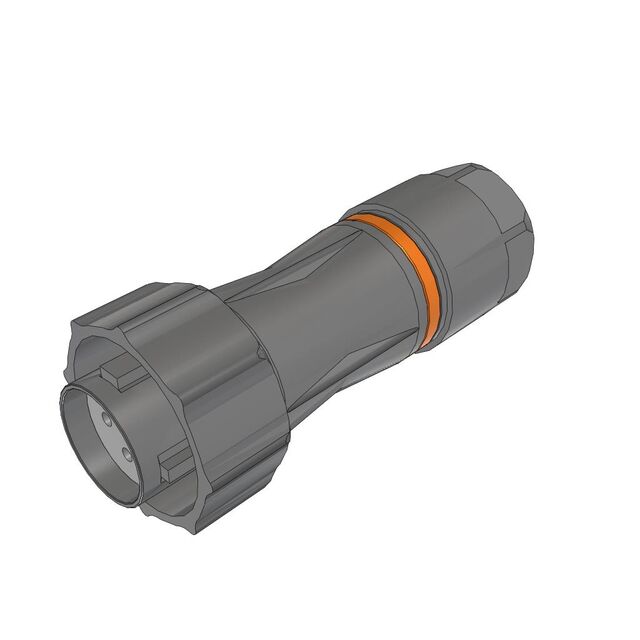

| Specification | ACPK-16-03-G-S-P-1 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [custom] | 8.67 mm, 5.08 mm |
| Cable Opening [custom] | 0.2 in, 0.341 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -10 °C |
| Orientation | 1 |
| Primary Material | Plastic |
| Shell Size - Insert | 16 |
| Shielding | Unshielded |
ACPK-16 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Mounting Type | Insert Material | Shielding | Orientation | Cable Opening [custom] | Cable Opening [custom] | Features | Contact Finish - Mating | Ingress Protection | Backshell Material, Plating | Shell Size - Insert | Color | Fastening Type | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Connector Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 105 ░C | -10 °C | Plastic | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Unshielded | 1 | 5.08 mm 8.67 mm | 0.2 in 0.341 in | Backshell Coupling Nut | Gold | IP68 - Dust Tight Waterproof | Nylon Polyamide (PA) | 16 | Black | Bayonet Lock | Brass | 10 çin | 0.25 çm | 1.3 A | Female Sockets Plug | 14 | |||
Samtec Inc. | 105 ░C | -10 °C | Plastic | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Unshielded | 1 | 5.08 mm 8.67 mm | 0.2 in 0.341 in | Backshell Coupling Nut | Gold | IP68 - Dust Tight Waterproof | Nylon Polyamide (PA) | 16 | Black | Bayonet Lock | Brass | 10 çin | 0.25 çm | 2.6 A | Male Pins Plug | 10 | |||
Samtec Inc. | 105 ░C | -10 °C | Plastic | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Unshielded | 1 | 5.08 mm 8.67 mm | 0.2 in 0.341 in | Backshell Coupling Nut | Gold | IP68 - Dust Tight Waterproof | Nylon Polyamide (PA) | 16 | Black | Bayonet Lock | Brass | 10 çin | 0.25 çm | 1 A 11.6 A | Female Sockets Plug | 2 | 8 | ||
Samtec Inc. | 105 ░C | -10 °C | Metal | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Unshielded | 1 | 5.08 mm 8.67 mm | 0.2 in 0.341 in | Backshell Coupling Nut | Gold | IP68 - Dust Tight Waterproof | Zinc Alloy | 16 | Bayonet Lock | Brass | 10 çin | 0.25 çm | 1 A 11.6 A | Male Pins Plug | 2 | 8 | Zinc Alloy | ||
Samtec Inc. | 105 ░C | -10 °C | Plastic | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Unshielded | 1 | 5.08 mm 8.67 mm | 0.2 in 0.341 in | Backshell Coupling Nut | Gold | IP68 - Dust Tight Waterproof | Nylon Polyamide (PA) | 16 | Black | Bayonet Lock | Brass | 10 çin | 0.25 çm | Female Sockets Plug | 4 | ||||
Samtec Inc. | 105 ░C | -10 °C | Metal | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Unshielded | 1 | 5.08 mm 8.67 mm | 0.2 in 0.341 in | Backshell Coupling Nut | Gold | IP68 - Dust Tight Waterproof | Zinc Alloy | 16 | Bayonet Lock | Brass | 10 çin | 0.25 çm | Female Sockets Plug | 4 | Zinc Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ACPK-16 Series
4 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
