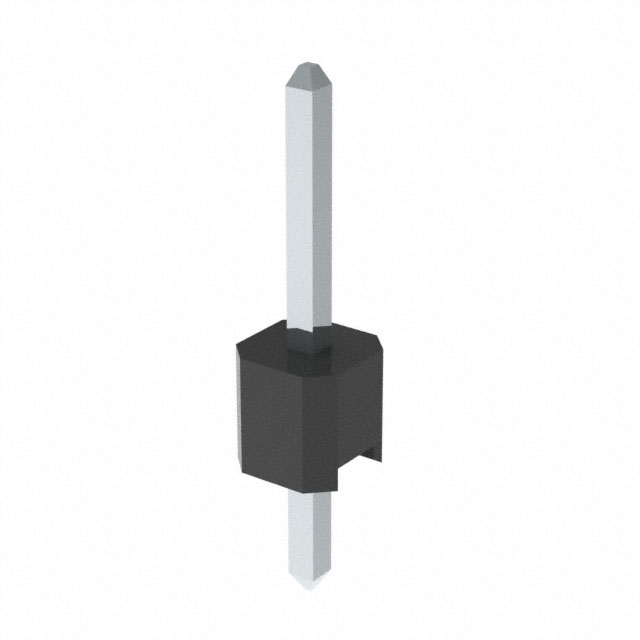

CONN HEADER .100" SNGL STR 1POS

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER .100" SNGL STR 1POS

Technical Specifications

Parameters and characteristics for this part

Specification	PREC001SAAN-RC

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.448 in
Overall Contact Length	11.39 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Termination	Overall Contact Length	Overall Contact Length	Insulation Material	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions	Style	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Shape	Mounting Type	Fastening Type	Current Rating (Amps)	Contact Finish - Post	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Number of Rows
Sullins Connector Solutions PREC001DAAN-RC	-40 °C	105 ░C	UL94 V-0	0.098 in	2.5 mm	Solder	0.448 in	11.39 mm	Polybutylene Terephthalate (PBT)	Black	2.54 mm	0.1 in	Breakaway Header	2	Board to Board Cable	Brass	0.12 in	3.05 mm	All	Square	Through Hole	Push-Pull	3 A	Tin	Male Pin	0.23 in	5.84 mm	Unshrouded	2
Sullins Connector Solutions PREC001SAAN-RC	-40 °C	105 ░C	UL94 V-0	0.098 in	2.5 mm	Solder	0.448 in	11.39 mm	Polybutylene Terephthalate (PBT)	Black			Breakaway Header	1	Board to Board Cable	Brass	0.12 in	3.05 mm	All	Square	Through Hole	Push-Pull	3 A	Tin	Male Pin	0.23 in	5.84 mm	Unshrouded	1
Sullins Connector Solutions PREC001SBAN-M71RC	-40 °C	105 ░C	UL94 V-0	0.098 in	2.5 mm	Solder			Polybutylene Terephthalate (PBT)	Black			Breakaway Header	1	Board to Board Cable	Brass	0.12 in	3.05 mm	All	Square	Through Hole Right Angle	Push-Pull	3 A	Tin	Male Pin	0.23 in	5.84 mm	Unshrouded	1
