SSI-LXR4815ID-150

Active

Lumex Opto/Components Inc.

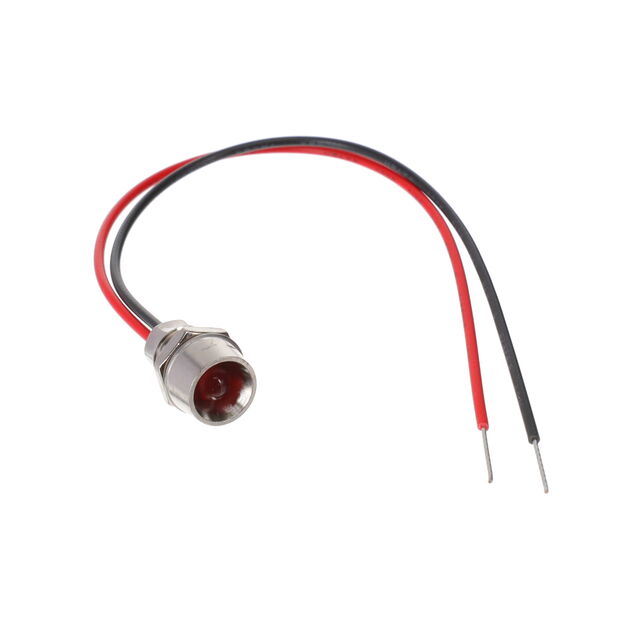

LED 5MM RED DIFF REFL6"LDS PNLMT

Deep-Dive with AI

Search across all available documentation for this part.

SSI-LXR4815ID-150

Active

Lumex Opto/Components Inc.

LED 5MM RED DIFF REFL6"LDS PNLMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.10
		10	$ 2.19
		100	$ 1.79
		500	$ 1.51
		1000	$ 1.39
		2000	$ 1.33
		5000	$ 1.30

Description

General part information

SSI-LXR4815 Series

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSI-LXR4815ID-150	SSI-LXR4815 Series

	-	-
Current	30 mA	25 - 30 mA
Current	-	25 mA
Current	-	25 mA
Lamp Color	Red	Green, Red, Orange, Blue, Yellow
Lens Color	Red	Green, Colorless, Red, White, Orange, Blue, Yellow
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	40 mcd	5 - 14000 mcd
Panel Cutout Dimensions	8.13 mm	8.13 - 8.2 mm
Panel Cutout Dimensions	0.32 in	0.32 in
Panel Cutout Shape	Round	Round
Termination Style	-	609.6 mm
Termination Style	-	24 in
Termination Style	-	Wire Leads
Type	LED	LED
Viewing Angle	60 °	20 - 60 °
Voltage	2 V	1.8 - 3.7 V
Wavelength - Peak	635 nm	525 - 700 nm

SSI-LXR4815 Series

LED 5MM GREEN REFLECTOR PANEL MT

Part	Lamp Color	Panel Cutout Shape	Wavelength - Peak	Current	Lens Transparency	Lens Style	Lens Size	Lens Size	Millicandela Rating	Voltage	Type	Viewing Angle	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Current [custom]	Current [custom]
Lumex Opto/Components Inc. SSI-LXR4815GD	Green	Round	565 nm	25 mA	Diffused	Round with Domed Top	T-1 3/4	5 mm	30 mcd	2.2 V	LED	60 °	Green	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815-Q21742	Green	Round	525 nm		Clear	Round with Domed Top	T-1 3/4	5 mm	14000 mcd	3.7 V	LED	20 °	Colorless	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815ID	Red	Round	635 nm	30 mA	Diffused	Round with Domed Top	T-1 3/4	5 mm	40 mcd	2 V	LED	60 °	Red	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815SRD-150	Red	Round	660 nm	30 mA	Diffused	Round with Domed Top	T-1 3/4	5 mm	300 mcd	1.8 V	LED	60 °	Red	8.2 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815HGW-150	Green, Red	Round	565 nm, 700 nm		Diffused	Round with Domed Top	T-1 3/4	5 mm	5 mcd, 8 mcd	2 V, 2.2 V	LED	60 °	White	8.13 mm	0.32 in	25 mA	25 mA
Lumex Opto/Components Inc. SSI-LXR4815SOD-150	Orange	Round	610 nm		Diffused	Round with Domed Top	T-1 3/4	5 mm	100 mcd	2 V	LED	60 °	Orange	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815USBD150	Blue	Round			Diffused	Round with Domed Top	T-1 3/4	5 mm	250 mcd	3.5 V	LED	60 °	Blue	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815ID-150	Red	Round	635 nm	30 mA	Diffused	Round with Domed Top	T-1 3/4	5 mm	40 mcd	2 V	LED	60 °	Red	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815GD-150	Green	Round	565 nm	25 mA	Diffused	Round with Domed Top	T-1 3/4	5 mm	30 mcd	2.2 V	LED	60 °	Green	8.13 mm	0.32 in
Lumex Opto/Components Inc. SSI-LXR4815SYD150B	Yellow	Round	590 nm		Diffused	Round with Domed Top	T-1 3/4	5 mm	200 mcd	2.1 V	LED	60 °	Yellow	8.13 mm	0.32 in
