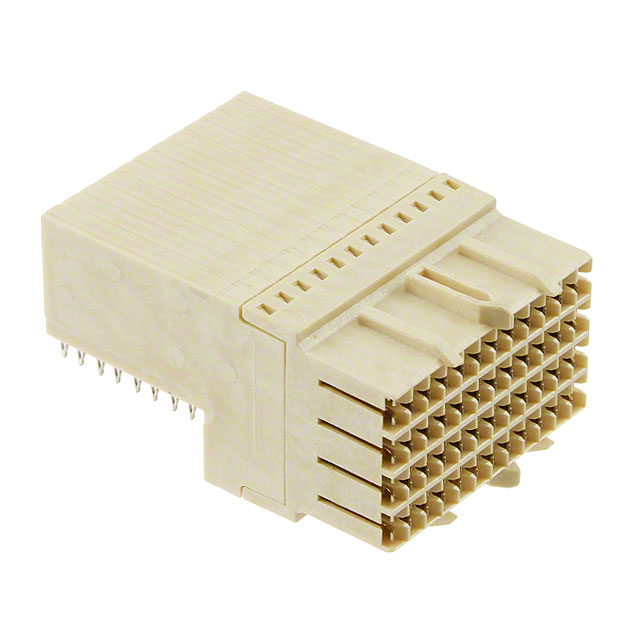

1857657-2

Active

TE Connectivity Raychem Cable Protection

CONN HARD METRIC F 96 POS PRESS FIT RA THRU-HOLE TRAY

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN HARD METRIC F 96 POS PRESS FIT RA THRU-HOLE TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	1857657-2

Color	Natural
Connector Type	Receptacle, Female Sockets
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	12
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	8
Termination	Press-Fit

Part	Connector Type	Mounting Type	Number of Positions	Color	Number of Columns	Number of Positions Loaded	Termination	Number of Rows
TE Connectivity Raychem Cable Protection 1857657-2	Receptacle Female Sockets	Board Edge Right Angle Through Hole	96	Natural	12	All	Press-Fit	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Position High Speed Backplane Connector, 8 Row, 12 Column, PCB Mount Receptacle, Right Angle, Unshrouded, Z-PACK Slim UHD
