General part information
Toggle Switches G-Series Toggle PADDLE
Technical documentation and resources
Parameters and characteristics for this part

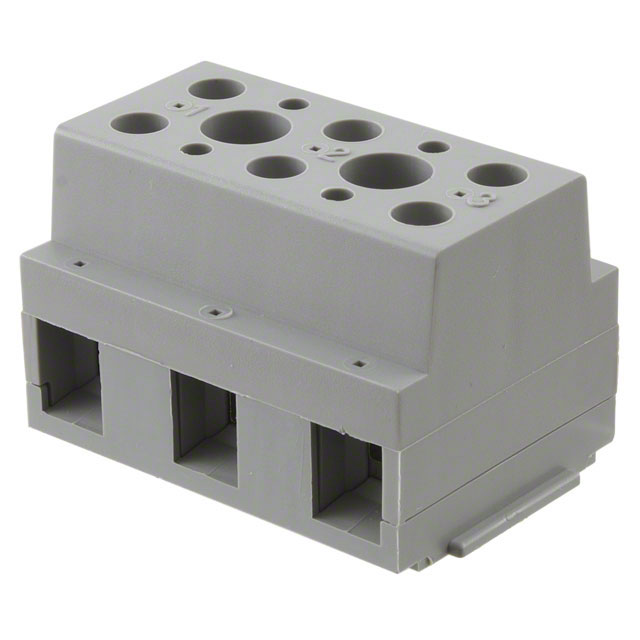

| Specification | 3013094 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Gray |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 800 V |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 6 AWG |
Toggle Switches G-Series Toggle PADDLE
| Part | Color | Top Termination | Number of Rows | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Terminal Block Type | Mounting Type | Voltage Rating | Bottom Termination | Barrier Type | Number of Circuits | Number of Wire Entries | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3013094 | Gray | Screws | 2 | 20 AWG | 6 AWG | Nylon, Polyamide (PA) | Barrier Block | Chassis, Panel | 800 V | Closed | Enclosed | 3 | 6 | UL94 V-2 |
