926646-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 8POS BLACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.25 8POS BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

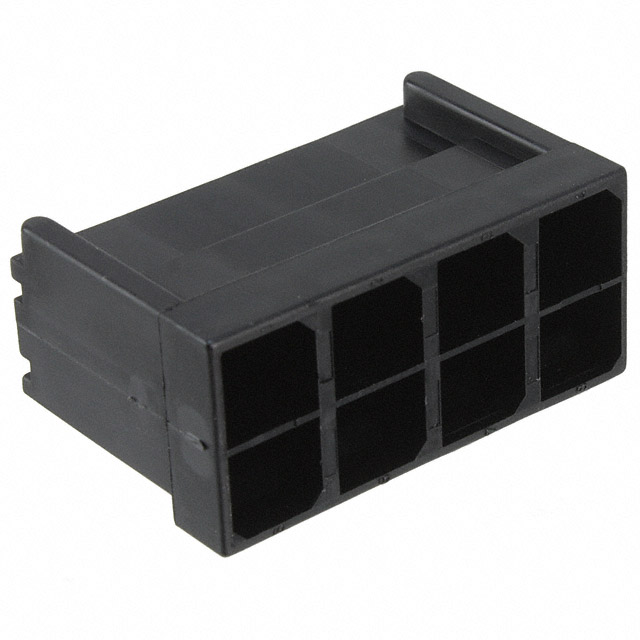

8 Position Housing Connector Female, Receptacle Black 0.250" (6.35mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	926646-1	926646 Series

Color	Black	White, Black, Natural
For Use With/Related Products	0.25 in	0.25 in
For Use With/Related Products	Quick Connects	Quick Connects
For Use With/Related Products	6.35 mm	6.35 mm
Gender	Female, Receptacle	Female, Receptacle
Material	Polyamide	Polyamide
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	8
Stacking Direction	Top to Bottom and Side to Side	Top to Bottom and Side to Side
Style	Housing	Housing
Terminal Size	6.35 mm	6.35 mm
Terminal Size	0.25 in	0.25 in
Terminal Type	Disconnect, Quick Connect	Disconnect, Quick Connect

CONN RCPT HSG 0.25 8POS WHITE

Part	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Mounting Type	Color	Number of Positions	Gender	Terminal Size	Terminal Size	Style	Material	Terminal Type	Note	Stacking Direction
TE Connectivity AMP Connectors 926646-8	0.25 in	Quick Connects	6.35 mm	Free Hanging (In-Line)	White	8	Female, Receptacle	6.35 mm	0.25 in	Housing	Polyamide	Disconnect, Quick Connect	Contacts Not Included	Top to Bottom and Side to Side
TE Connectivity AMP Connectors 926646-1	0.25 in	Quick Connects	6.35 mm	Free Hanging (In-Line)	Black	8	Female, Receptacle	6.35 mm	0.25 in	Housing	Polyamide	Disconnect, Quick Connect	Contacts Not Included	Top to Bottom and Side to Side
TE Connectivity AMP Connectors 926646-3	0.25 in	Quick Connects	6.35 mm	Free Hanging (In-Line)	Natural	8	Female, Receptacle	6.35 mm	0.25 in	Housing	Polyamide	Disconnect, Quick Connect	Contacts Not Included	Top to Bottom and Side to Side
