Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2900290 | 29002 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 33 mA | 4.5 - 33 mA |
| Coil Resistance | 364 Ohms | 1.37 - 1333 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A | 6 - 10 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 8 ms | 5 - 8 ms |
| Operating Temperature [Max] | 60 °C | 55 - 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 8 - 10 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal |
29002 Series
ELECTROMECHANICAL RELAY 24VDC 24VAC 1.371KOHM 10A SPDT(14X94X80)MM DIN RAIL RELAY MODULE
| Part | Release Time | Coil Voltage | Coil Resistance | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Operate Time | Coil Current | Mounting Type | Contact Rating (Current) | Contact Form | Approval Agency | Relay Type | Features | Coil Type | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900293 | 10 ms | 24 VAC | 1.37 kOhms | Spring Terminal | -40 °C | 60 °C | Silver Nickel (AgNi) | 8 ms | 17.5 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900296 | 10 ms | 120 VAC, 120 VDC | Spring Terminal | -40 °C | 60 °C | Silver Nickel (AgNi) | 7 ms | 4.5 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC | |
Phoenix Contact 2900295 | 10 ms | 60 VDC | 6 kOhms | Spring Terminal | -40 °C | 60 °C | Silver Nickel (AgNi) | 8 ms | 10 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Diode, Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900294 | 10 ms | 48 VDC | 2.4 kOhms | Spring Terminal | -40 °C | 60 °C | Silver Nickel (AgNi) | 8 ms | 20 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Diode, Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900298 | 10 ms | 24 VDC | 1333 Ohms | Spring Terminal | -40 °C | 60 °C | Silver Tin Oxide (AgSnO) | 8 ms | 18 mA | DIN Rail | 10 A | SPST-NO (1 Form A) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900297 | 10 ms | 230 VAC | 51.11 kOhms | Spring Terminal | -40 °C | 55 °C | Silver Nickel (AgNi) | 7 ms | 4.5 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900291 | 10 ms | 24 VDC | 1333 Ohms | Spring Terminal | -40 °C | 60 °C | Silver Nickel (AgNi) | 8 ms | 18 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900299 | 8 ms | 24 VDC | 2.67 kOhms | Spring Terminal | -40 °C | 60 °C | Silver Tin Oxide (AgSnO) | 5 ms | 9 mA | DIN Rail | 6 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Phoenix Contact 2900290 | 10 ms | 12 VDC | 364 Ohms | Spring Terminal | -40 °C | 60 °C | Silver Nickel (AgNi) | 8 ms | 33 mA | DIN Rail | 10 A | SPDT (1 Form C) | CE, UKCA | General Purpose | Lighted Indicator, Socket Included | Non Latching | 250 VAC, 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.68 | |
| 10 | $ 31.47 | |||
| 50 | $ 28.96 | |||
| 100 | $ 26.75 | |||
| 250 | $ 25.49 | |||
Description
General part information
29002 Series

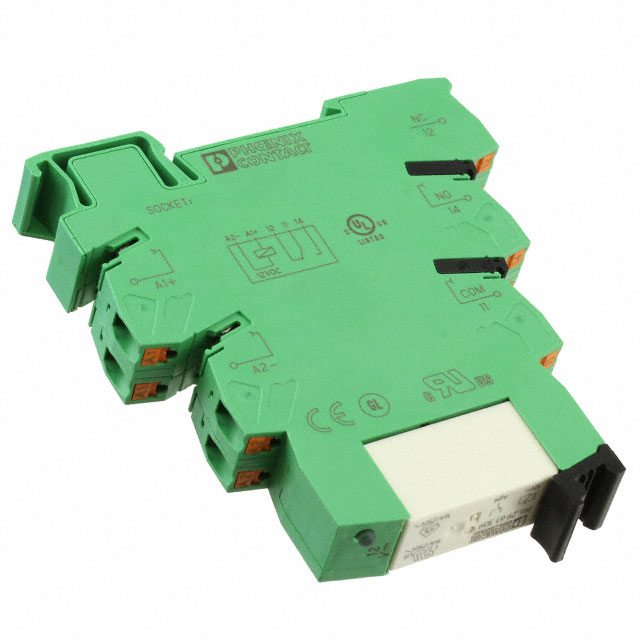

General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
