2900291

Active

Phoenix Contact

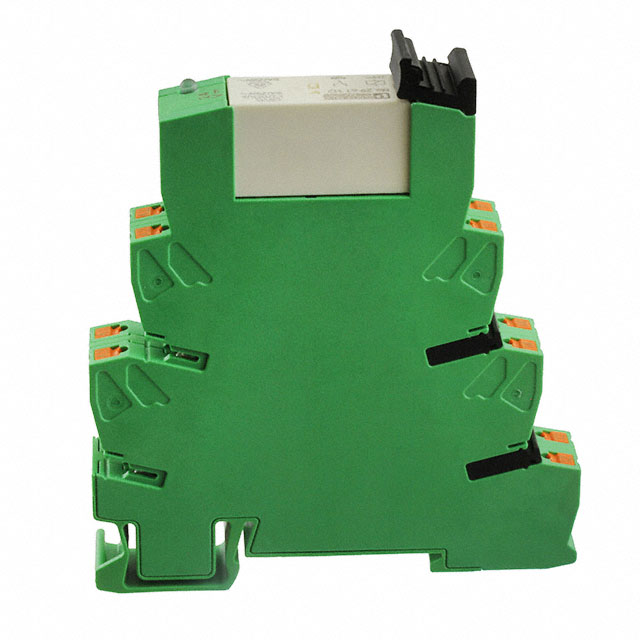

RELAY GEN PURPOSE SPDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2900291

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.69

Description

General part information

29002 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2900291	29002 Series

Approval Agency	UKCA, CE	UKCA, CE
Coil Current	18 mA	4.5 - 33 mA
Coil Resistance	1333 Ohms	1.37 - 1333 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A	6 - 10 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	5 - 8 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	8 - 10 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal

29002 Series

ELECTROMECHANICAL RELAY 24VDC 24VAC 1.371KOHM 10A SPDT(14X94X80)MM DIN RAIL RELAY MODULE

Part	Release Time	Coil Voltage	Coil Resistance	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Operate Time	Coil Current	Mounting Type	Contact Rating (Current)	Contact Form	Approval Agency	Relay Type	Features	Coil Type	Switching Voltage
Phoenix Contact 2900293	10 ms	24 VAC	1.37 kOhms	Spring Terminal	-40 °C	60 °C	Silver Nickel (AgNi)	8 ms	17.5 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900296	10 ms	120 VAC, 120 VDC		Spring Terminal	-40 °C	60 °C	Silver Nickel (AgNi)	7 ms	4.5 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900295	10 ms	60 VDC	6 kOhms	Spring Terminal	-40 °C	60 °C	Silver Nickel (AgNi)	8 ms	10 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Diode, Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900294	10 ms	48 VDC	2.4 kOhms	Spring Terminal	-40 °C	60 °C	Silver Nickel (AgNi)	8 ms	20 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Diode, Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900298	10 ms	24 VDC	1333 Ohms	Spring Terminal	-40 °C	60 °C	Silver Tin Oxide (AgSnO)	8 ms	18 mA	DIN Rail	10 A	SPST-NO (1 Form A)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900297	10 ms	230 VAC	51.11 kOhms	Spring Terminal	-40 °C	55 °C	Silver Nickel (AgNi)	7 ms	4.5 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900291	10 ms	24 VDC	1333 Ohms	Spring Terminal	-40 °C	60 °C	Silver Nickel (AgNi)	8 ms	18 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900299	8 ms	24 VDC	2.67 kOhms	Spring Terminal	-40 °C	60 °C	Silver Tin Oxide (AgSnO)	5 ms	9 mA	DIN Rail	6 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
Phoenix Contact 2900290	10 ms	12 VDC	364 Ohms	Spring Terminal	-40 °C	60 °C	Silver Nickel (AgNi)	8 ms	33 mA	DIN Rail	10 A	SPDT (1 Form C)	CE, UKCA	General Purpose	Lighted Indicator, Socket Included	Non Latching	250 VAC, 250 VDC
