Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.80 | |
| 50 | $ 40.47 | |||
| 100 | $ 38.44 | |||
General part information

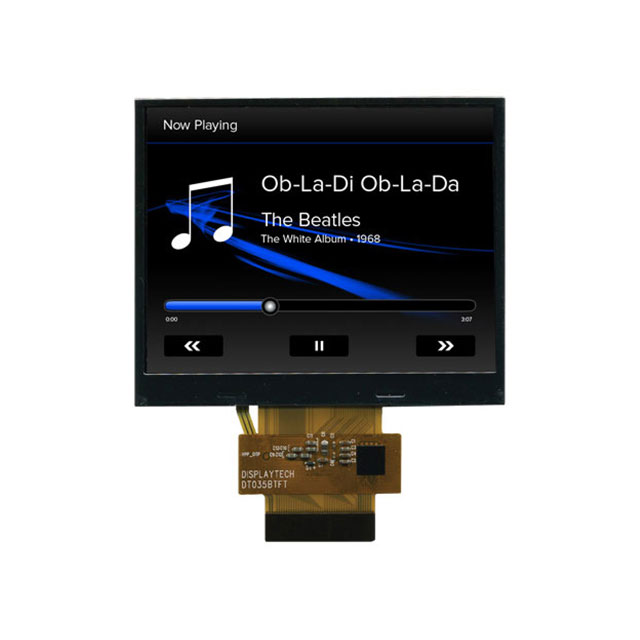

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 3.5" (88.90mm) 320 x 240
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | DT035BTFT-TS | DT035 Series |
|---|---|---|
| Backlight | LED | LED |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pitch | - | 0.22 mm |
| Dot Pitch | - | 0.22 mm |
| Dot Pixels [x] | 320 pixels | 320 pixels |
| Dot Pixels [y] | 240 pixels | 240 pixels |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | - | I2C |
| Touchscreen | Resistive | Capacitive, Resistive |
| Viewing Area [x] | 70.08 mm | 70.08 mm |
| Viewing Area [y] | 52.56 mm | 52.56 mm |
LCD DISP TFT 3.5" 320X240
| Part | Graphics Color | Backlight | Display Type | Interface | Dot Pixels [y] | Dot Pixels [x] | Dot Pitch [y] | Dot Pitch [x] | Touchscreen | Display Mode | Viewing Area [y] | Viewing Area [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Displaytech DT035BTFT-PTS2 | Blue, Green, Red | LED | TFT - Color | I2C | 240 pixels | 320 pixels | 0.22 mm | 0.22 mm | Capacitive | Transmissive | 52.56 mm | 70.08 mm |
Displaytech DT035BTFT | Blue, Green, Red | LED | TFT - Color | 240 pixels | 320 pixels | Transmissive | 52.56 mm | 70.08 mm | ||||
Displaytech DT035BTFT-TS | Blue, Green, Red | LED | TFT - Color | 240 pixels | 320 pixels | Resistive | Transmissive | 52.56 mm | 70.08 mm |
