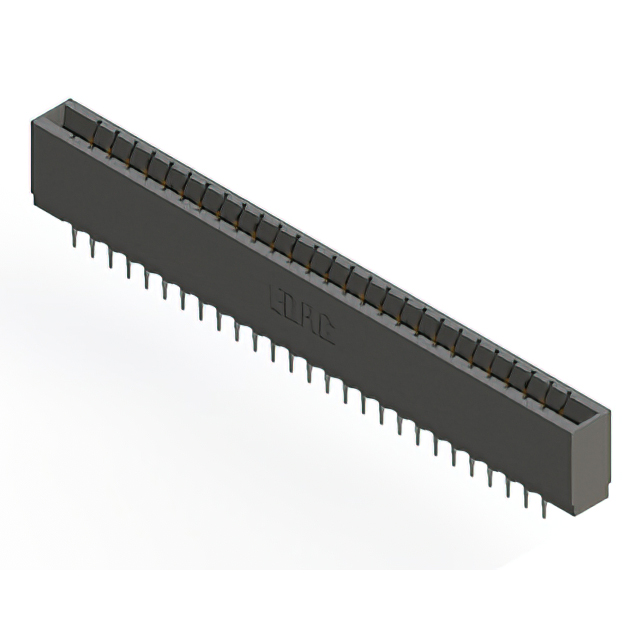

737-054-560-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 54POS 0.156

737-054-560-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 54POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

737-054 Series

54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	737-054-560-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Make Before Break, Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	54, 27
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2 rows

737-054 Series

Part	Contact Finish	Contact Material	Termination	Color	Card Type	Number of Positions	Contact Finish Thickness	Read Out	Number of Rows	Gender	Contact Type	Card Thickness (Min)	Card Thickness (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Pitch	Termination Rows	Material - Insulation
EDAC Inc. 737-054-541-201	Gold	Copper Alloy	Press-Fit Wire Wrap	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-540-201	Gold	Copper Alloy	Press-Fit Wire Wrap	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-525-206	Gold	Copper Alloy	Press-Fit	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-540-206	Gold	Copper Alloy	Press-Fit Wire Wrap	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-522-206	Gold	Copper Alloy	Press-Fit	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-522-201	Gold	Copper Alloy	Press-Fit	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-560-201	Gold	Copper Alloy	Press-Fit	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever Make Before Break	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic
EDAC Inc. 737-054-545-201	Gold	Copper Alloy	Press-Fit Wire Wrap	Black	Dual Edge Non Specified	27 54	30 µin	Dual	2	Female	Cantilever	0.054 in	0.07 in	-40 °C	105 °C	Through Hole	0.156 in	2 rows	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

737-054-560-201 | Datasheet
