BU-P3690-2
ActiveMueller Electric Co
BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 5 A, 1 KV, GOLD PLATED CONTACTS, RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-P3690-2 |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Color | Red |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Gender | Male |
| Insulation | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -50 °C |
| Plug/Mating Plug Diameter | Miniature |
| Termination | Solder |
| Type | Banana Plug |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-P3690 Series

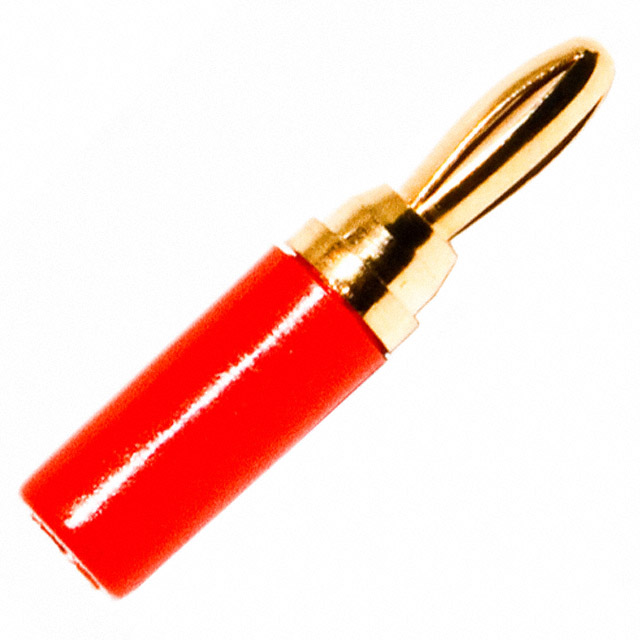

The BU-P3690-2 is a 5A red Mini Banana Plug, made of gold plated beryllium copper and nylon insulator for use with 22 and 20AWG wire.
