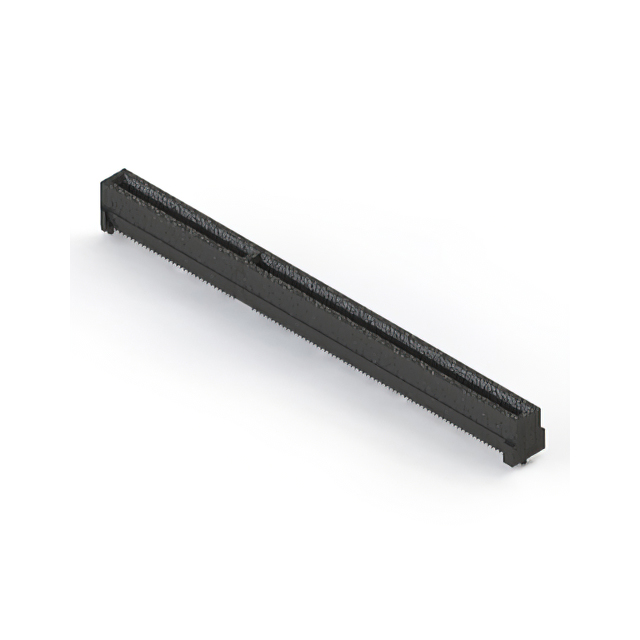

370-200-229-002

Active

EDAC Inc.

CONN EDGE DUAL FML 200POS 0.031

Search across all available documentation for this part.

Active

EDAC Inc.

CONN EDGE DUAL FML 200POS 0.031

Technical Specifications

Parameters and characteristics for this part

Specification	370-200-229-002

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Cantilever
Features	Keyed, Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions/Bay/Row [custom]	32
Number of Positions/Bay/Row [custom]	68
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder
Termination Rows	2

Part	Features	Contact Material	Contact Finish Thickness	Read Out	Contact Finish	Contact Type	Gender	Termination	Pitch [x]	Pitch [x]	Termination Rows	Material - Insulation	Mounting Type	Color	Card Type	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness	Card Thickness
EDAC Inc. 370-200-229-002	Board Guide Keyed	Phosphor Bronze	Flash	Dual	Gold	Cantilever	Female	Solder	0.8 mm	0.031 in	2	Thermoplastic	Surface Mount	Black	Non Specified - Dual Edge	2	32	68	-55 °C	125 °C	0.062 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	750	$ 8.09

General part information

200 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
