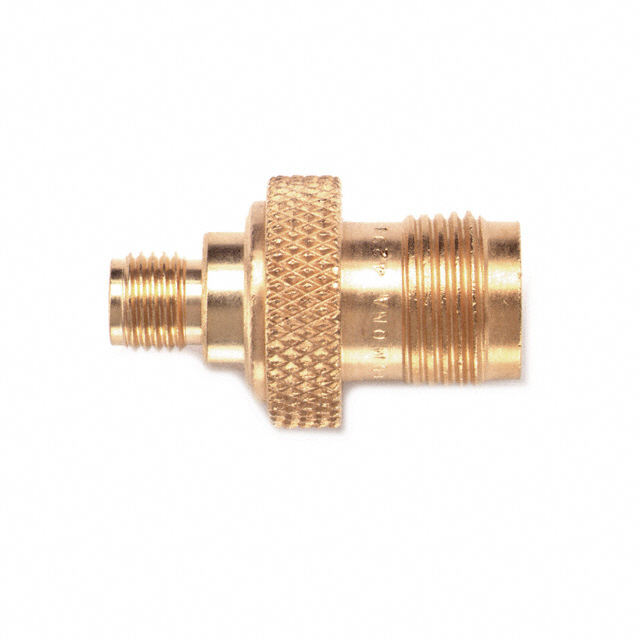

Specification	4295

Adapter Series	SMA to TNC
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Between Series
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End)	TNC Jack, Female Socket
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight
