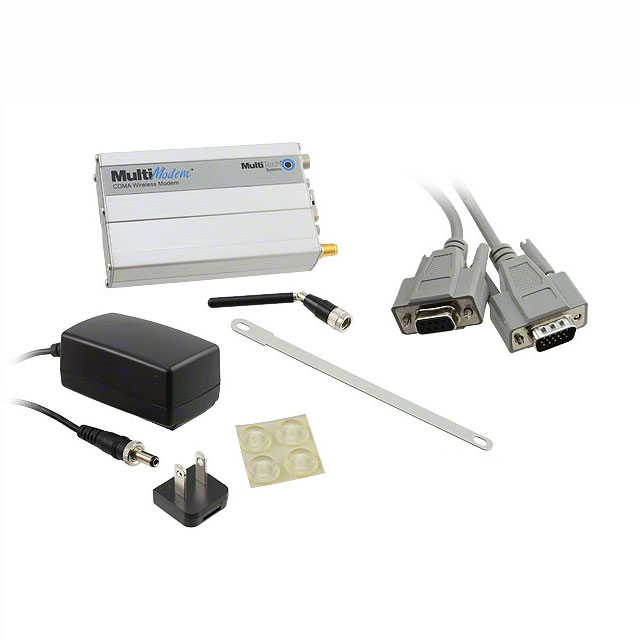

MTCBA-C1X-N3-NAM

Obsolete

Multi-Tech Systems Inc.

MODEM CDMA FOR VERIZON NETWORKS

Search across all available documentation for this part.

Obsolete

Multi-Tech Systems Inc.

MODEM CDMA FOR VERIZON NETWORKS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MTCBA-C1X-N3-NAM	MTCBA-C1 Series

Applications	Verizon™ Networks (USA)	Verizon™ Networks (USA), Aeris Networks (USA), Sprint Networks (USA)
Data Rate (Max)	153 kbps	153 - 153.6 kbps
Features	Verizon Networks	Verizon Networks
Frequency	800 MHz, 1900 MHz	800 - 1900 MHz
Function	CDMA, Transceiver, Modem	CDMA, Transceiver, Modem
Interface	RS-232 (DB15)	USB, RS-232 (DB15), RS-232
Modulation or Protocol	CDMA2000	CDMA2000
Voltage - Supply	-	5 V
Voltage - Supply	-	USB
Voltage - Supply [Max]	32 VDC	32 VDC
Voltage - Supply [Min]	5 V	5 - 9 V

MODEM CDMA USB 800MHZ 1.9GHZ

Part	Frequency	Modulation or Protocol	Data Rate (Max)	Interface	Function	Applications	Voltage - Supply	Voltage - Supply	Features	Voltage - Supply [Min]	Voltage - Supply [Max]
Multi-Tech Systems Inc. MTCBA-C1-U-N3	800 MHz, 1900 MHz	CDMA2000	153.6 kbps	USB	CDMA, Modem, Transceiver	Verizon™ Networks (USA)	5 V	USB	Verizon Networks
Multi-Tech Systems Inc. MTCBA-C1X-N3-NAM	800 MHz, 1900 MHz	CDMA2000	153 kbps	RS-232 (DB15)	CDMA, Modem, Transceiver	Verizon™ Networks (USA)			Verizon Networks	5 V	32 VDC
Multi-Tech Systems Inc. MTCBA-C1X-N16-NAM	800 MHz, 1900 MHz	CDMA2000	153.6 kbps	RS-232 (DB15)	CDMA, Modem, Transceiver	Aeris Networks (USA)				9 V	32 VDC
Multi-Tech Systems Inc. MTCBA-C1-N2	800 MHz, 1900 MHz	CDMA2000	153.6 kbps	RS-232	CDMA, Modem, Transceiver	Sprint Networks (USA)				9 V	32 VDC
Multi-Tech Systems Inc. MTCBA-C1-N2-NAM	800 MHz, 1900 MHz	CDMA2000	153.6 kbps	RS-232	CDMA, Modem, Transceiver	Sprint Networks (USA)				9 V	32 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 284.02

General part information

RF Transceiver, CDMA, Modem 800MHz, 1.9GHz CDMA2000 RS-232 (DB15) 153kbps

Technical documentation and resources

No documents available
