CCA13M/90

Active

Vector Electronics

CARD RACK ALUM 9X19

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK ALUM 9X19

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCA13M/90	CCA13M Series

Card Size Range	63.5 mm, 165.1 mm	63.5 - 165.1 mm
Card Size Range [Max]	114.3 mm	114.3 mm
Card Size Range [Max] [z]	4.5 in	4.5 in
Card Size Range [x]	6.5 in	6.5 in
Card Size Range [z]	2.5 in	2.5 in
Guide Method	Card Guide	Card Guide
Height [z]	133.35 mm	133.35 mm
Height [z]	5.25 in	5.25 in
Material	Aluminum	Aluminum
Size / Dimension	-	228.6 mm
Size / Dimension	-	209.55 - 260.35 mm
Size / Dimension [x]	228.6 mm	228.6 mm
Size / Dimension [x]	9 in	9 in
Size / Dimension [y]	482.6 mm	8.25 - 482.6 "
Size / Dimension [y]	19 in	19 in
Type	Assembled Subracks with Card Guides	Assembled Subracks with Card Guides

C.CAGE,METAL SCREW-IN GUIDES,HALF-WIDTH

Part	Type	Guide Method	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Height [z]	Height [z]	Card Size Range [z]	Card Size Range	Card Size Range [Max]	Card Size Range [x]	Card Size Range [Max] [z]	Size / Dimension [x]	Size / Dimension [y]
Vector Electronics CCA13M-H/90	Assembled Subracks with Card Guides	Card Guide	228.6 mm	228.6 mm	10.25 "	260.35 mm	Aluminum	133.35 mm	5.25 in	2.5 in	63.5 mm, 165.1 mm	114.3 mm	6.5 in	4.5 in
Vector Electronics CCA13M-HT/90	Assembled Subracks with Card Guides	Card Guide	228.6 mm	228.6 mm	8.25 in	209.55 mm	Aluminum	133.35 mm	5.25 in	2.5 in	63.5 mm, 165.1 mm	114.3 mm	6.5 in	4.5 in
Vector Electronics CCA13M/90	Assembled Subracks with Card Guides	Card Guide	228.6 mm		482.6 mm		Aluminum	133.35 mm	5.25 in	2.5 in	63.5 mm, 165.1 mm	114.3 mm	6.5 in	4.5 in	9 in	19 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

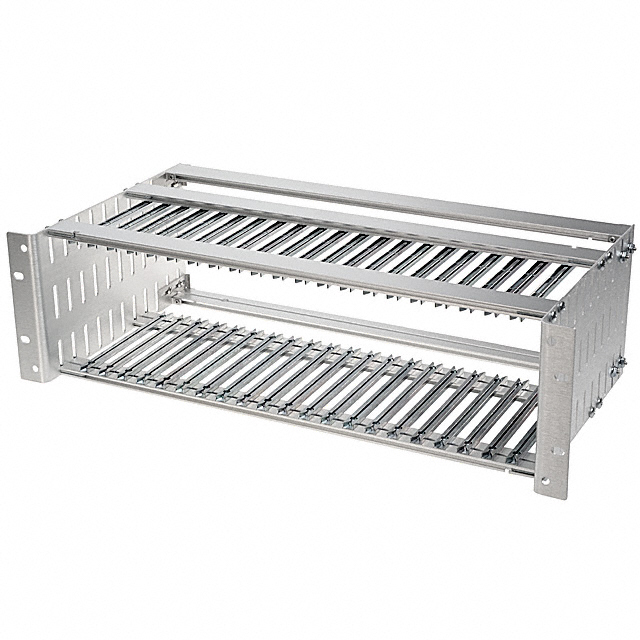

Aluminum Assembled Subracks with Card Guides 3U = 5.250" (133.35mm)
