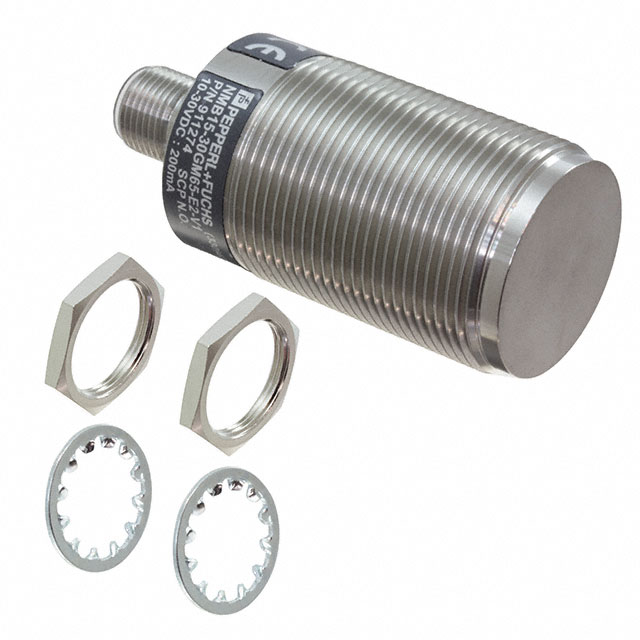

NMB15-30GM65-E2-V1
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
NMB15-30GM65-E2-V1
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NMB15-30GM65-E2-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP69K, IP68, IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 15 mm |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
NMB15 Series
| Part | Sensor Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Indicator [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Distance | Sensing Distance | Material - Body | Package / Case | Shielding | Termination Style | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PEPPERL+FUCHS | Inductive | 70 °C | -25 °C | IP67 IP68 IP69K | LED | 30 VDC | 10 VDC | 15 mm | 0.591 " | Stainless Steel | Cylinder Threaded - M30 | Unshielded | Connector | PNP-NO 3-Wire |
PEPPERL+FUCHS | Inductive | 70 °C | -25 °C | IP67 IP68 IP69K | LED | 30 VDC | 10 VDC | 15 mm | 0.591 " | Stainless Steel | Cylinder Threaded - M30 | Unshielded | Connector | PNP-NO 3-Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NMB15 Series
INDUCTIVE PROXIMITY SENSOR, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR
