794741-1

Active

TE Connectivity AMP Connectors

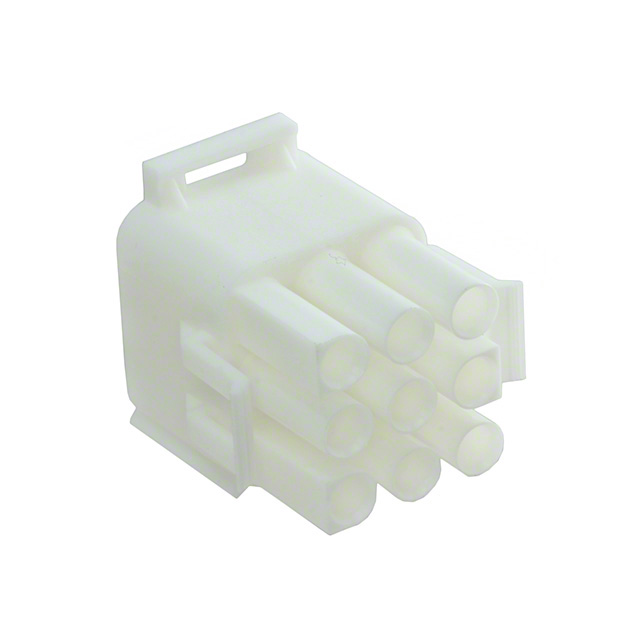

CONN PLUG HSG 9POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 9POS 6.35MM

Technical Specifications

Parameters and characteristics for this part

CONN PLUG HSG 9POS 6.35MM

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Insulation Material	Row Spacing	Row Spacing	Mounting Type	Contact Termination	Fastening Type	Note	Color	Pitch [x]	Pitch [x]	Contact Type
TE Connectivity AMP Connectors 794741-1	9	-55 °C	125 °C	3	Plug	Nylon, Polyamide (PA)	6.35 mm	0.25 in	Free Hanging (In-Line)	Crimp	Latch Lock	Contacts Not Included	Natural	0.25 in	6.35 mm	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Plug Natural 0.250" (6.35mm)
