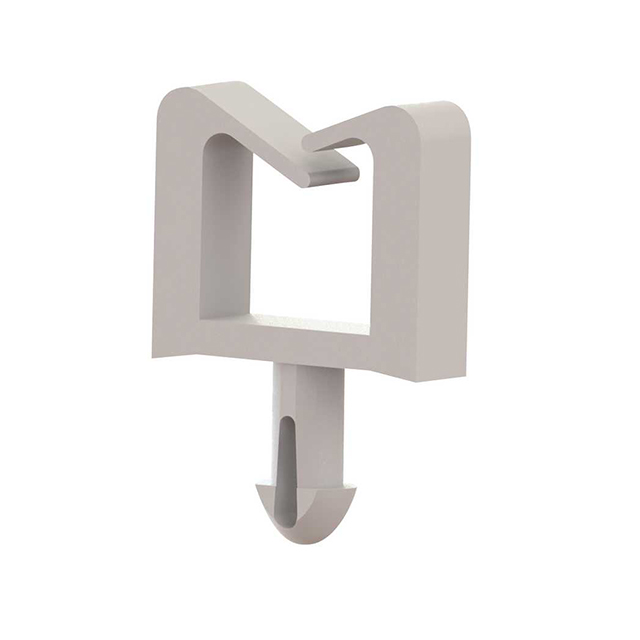

MWS-1-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	MWS-1-01

Color	Natural
Height [z]	0.23 in
Height [z]	5.84 mm
Length	0.27 in
Length	6.86 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [x]	0.17 in
Opening Size [x]	4.32 mm
Opening Size [z]	3.05 mm
Opening Size [z]	0.12 in
Panel Hole Size [diameter]	0.07 in
Panel Hole Size [diameter]	1.78 mm
Panel Thickness [custom]	0.062 in
Panel Thickness [custom]	1.57 mm
Type	Clip, Wire Saddle
Type Attributes	Micro
Width [x]	1.91 mm
Width [x]	0.075 in

Part	Material	Mounting Type	Height [z]	Height [z]	Width [x]	Width [x]	Color	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Opening Size [x]	Opening Size [x]	Opening Size [z]	Opening Size [z]	Material Flammability Rating	Type	Type Attributes	Panel Thickness [custom]	Panel Thickness [custom]	Length	Length
Essentra Access Solutions MWS-1-01	Polyamide (PA66) Nylon 6/6	Push In	0.23 in	5.84 mm	1.91 mm	0.075 in	Natural	0.07 in	1.78 mm	0.17 in	4.32 mm	3.05 mm	0.12 in	UL94 V-2	Clip Wire Saddle	Micro	0.062 in	1.57 mm	0.27 in	6.86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In 0.170" L x 0.120" H (4.32mm x 3.05mm)

Technical documentation and resources

No documents available
