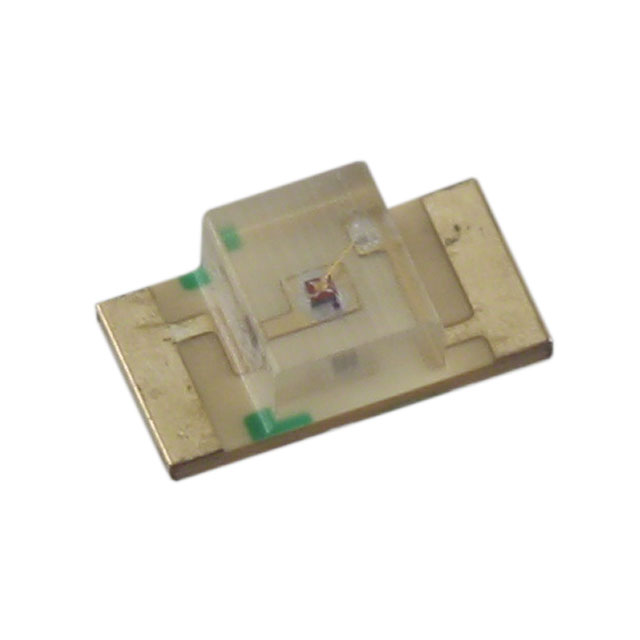

Specification	APTR3216SURCK

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max)	1.05 mm
Lens Color	Colorless
Lens Length	1.4 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	1.6 mm
Millicandela Rating	80 mcd
Mounting Type	Bottom Entry, Surface Mount
Package / Case	1206 (3216 Metric)
Package Name	Chip LED
Size / Dimension Length	3.2 mm
Size / Dimension Width	1.6 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Dominant	630 nm
Wavelength - Peak	645 nm

APTR3216 Series

Part	Lens Color	Configuration	Lens Style	Viewing Angle	Lens Transparency	Color	Lens Length	Lens Width	Mounting Type	Size / Dimension Width	Size / Dimension Length	Current - Test	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Package Name	Height (Max)	Package / Case	Wavelength - Dominant	Power - Max	Wavelength	Operating Temperature (Min)	Operating Temperature (Max)	Current - Dark (Id) (Max)	Orientation	Voltage - Collector Emitter Breakdown (Max)
Kingbright APTR3216YC	Colorless	Standard	Flat Top Rectangle	120 °	Clear	Yellow	1.4 mm	1.6 mm	Bottom Entry Surface Mount	1.6 mm	3.2 mm	20 mA	590 nm	8 mcd	2.1 V	Chip LED	1.05 mm	1206 (3216 Metric)	588 nm
Kingbright APTR3216SYCK/J3-PRV	Colorless		Flat Top Rectangle	140 °	Clear	Yellow	1.6 mm	1.4 mm	Surface Mount	1.6 mm	3.2 mm	20 mA	590 nm	320 mcd	2 V	1206	1.25 mm	1206 (3216 Metric)	590 nm
Kingbright APTR3216EC	Colorless	Standard	Flat Top Rectangle	120 °	Clear	Red	1.4 mm	1.6 mm	Bottom Entry Surface Mount	1.6 mm	3.2 mm	20 mA	627 nm	8 mcd	2 V	Chip LED	1.05 mm	1206 (3216 Metric)	617 nm
Kingbright APTR3216ZGC	Colorless	Standard	Flat Top Rectangle	120 °	Clear	Green	1.4 mm	1.6 mm	Bottom Entry Surface Mount	1.6 mm	3.2 mm	20 mA	515 nm	400 mcd	3.3 V	Chip LED	1.05 mm	1206 (3216 Metric)	525 nm
Kingbright APTR3216QBC/D	Colorless	Standard	Flat Top Rectangle	120 °	Clear	Blue	1.4 mm	1.6 mm	Bottom Entry Surface Mount	1.6 mm	3.2 mm	20 mA	460 nm	100 mcd	3.3 V	Chip LED	1.05 mm	1206 (3216 Metric)	465 nm
Kingbright APTR3216-VFX			Flat Top Rectangle	160 °		Violet	1.6 mm	1.4 mm	Surface Mount	1.6 mm	3.2 mm	20 mA		100 mcd	3.3 V	1206	1.25 mm	1206 (3216 Metric)
Kingbright APTR3216SECK/J3-PRV	Colorless		Flat Top Rectangle	140 °	Clear	Red	1.6 mm	1.4 mm	Surface Mount	1.6 mm	3.2 mm	20 mA	640 nm	350 mcd	2.2 V	1206	1.25 mm	1206 (3216 Metric)	625 nm
Kingbright APTR3216SURCK	Colorless	Standard	Flat Top Rectangle	120 °	Clear	Red	1.4 mm	1.6 mm	Bottom Entry Surface Mount	1.6 mm	3.2 mm	20 mA	645 nm	80 mcd	1.95 V	Chip LED	1.05 mm	1206 (3216 Metric)	630 nm
Kingbright APTR3216PBC/A	Colorless	Standard	Flat Top Rectangle	120 °	Clear	Blue	1.4 mm	1.6 mm	Bottom Entry Surface Mount	1.6 mm	3.2 mm	20 mA	468 nm	60 mcd	3.2 V	Chip LED	1.05 mm	1206 (3216 Metric)	470 nm
Kingbright APTR3216P3BT				140 °					Surface Mount									1206 (3216 Metric)		100 mW	940 nm	-40 °C	85 °C	100 nA	Top View	30 V
