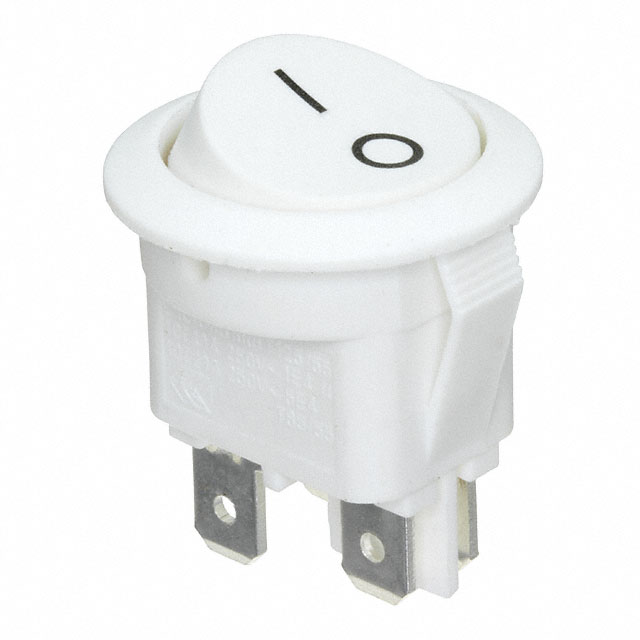

RR812C2211
ActiveE-Switch
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RR812C2211
ActiveE-Switch
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RR812C2211 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Round |
| Approval Agency | UL, cUL |
| Circuit | DPST |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.17 | |
| 10 | $ 1.05 | |||
| 25 | $ 0.99 | |||
| 50 | $ 0.94 | |||
| 100 | $ 0.90 | |||
| 300 | $ 0.86 | |||
| 500 | $ 0.83 | |||
Description
General part information
RR812C2 Series
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
