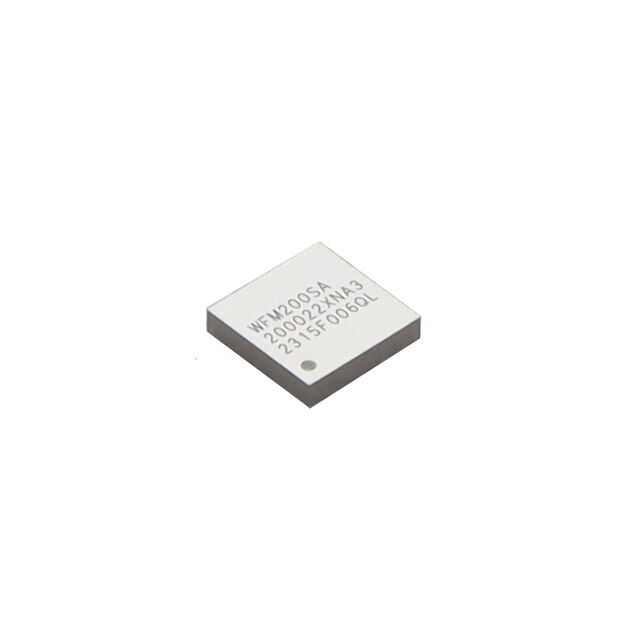

WFM200S022XNA3

Active

Silicon Labs

RF TXRX MODULE WIFI CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WFM200S022XNA3

Active

Silicon Labs

RF TXRX MODULE WIFI CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WFM200S022XNA3

Antenna Type	Integrated, Chip
Current - Receiving [Max]	48.3 mA
Current - Receiving [Min]	42.3 mA
Current - Transmitting [Max]	99.4 mA
Current - Transmitting [Min]	45.4 mA
Data Rate	72.2 Mbps
Frequency [Max]	2.484 GHz
Frequency [Min]	2.412 GHz
Modulation	DSSS
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	58-SMD Module
Power - Output	15.1 dBm
Protocol	802.11b/g/n
RF Family/Standard	WiFi
Sensitivity	-96.3 dBm
Utilized IC / Part	WFM200S
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.62 V

WFM200 Series

Part	Package / Case	Protocol	Data Rate	Antenna Type	Frequency [Max]	Frequency [Min]	Current - Receiving [Max]	Current - Receiving [Min]	Utilized IC / Part	Current - Transmitting [Min]	Current - Transmitting [Max]	Modulation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Power - Output
Silicon Labs WFM200SS22XNN3R	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm
Silicon Labs WFM200SS22XNN3	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm
Silicon Labs WFM200SS22XNA3	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm
Silicon Labs WFM200S022XNN3R	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm
Silicon Labs WFM200S022XNN3	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm
Silicon Labs WFM200S022XNA3R	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm
Silicon Labs WFM200S022XNA3	58-SMD Module	802.11b/g/n	72.2 Mbps	Integrated Chip	2.484 GHz	2.412 GHz	48.3 mA	42.3 mA	WFM200S	45.4 mA	99.4 mA	DSSS	Surface Mount	105 °C	-40 °C	-96.3 dBm	3.6 V	1.62 V	WiFi	15.1 dBm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.75
		10	$ 9.73
		25	$ 8.96
		80	$ 8.19
		260	$ 7.68
		520	$ 7.17
		1040	$ 6.81

Description

General part information

WFM200 Series

WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.484GHz Integrated, Chip Surface Mount
