EGA.2B.302.CLN

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGA.2B.302.CLN

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EGA.2B Series

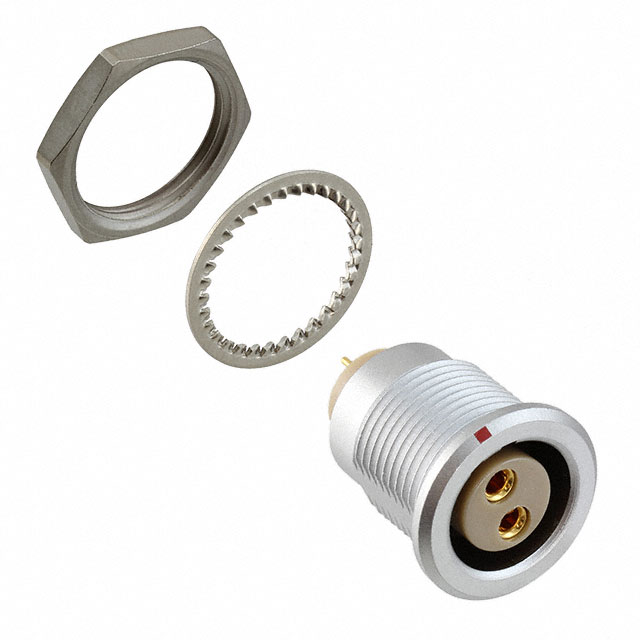

2 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGA.2B.302.CLN	EGA.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	25 A	5 - 25 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	2	2 - 19
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 319
Shielding	Shielded	Shielded
Termination	Solder	Solder

EGA.2B Series

CONN RCPT FMALE 16P SOLDER CUP

Part	Contact Material	Mounting Feature	Orientation	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Primary Material	Current Rating (Amps)	Number of Positions	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Fastening Type	Color	Insert Material	Contact Finish - Mating	Shielding	Shell Size - Insert	Number of Positions	Mounting Type	Termination
LEMO EGA.2B.316.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	6 A	16	Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	316
LEMO EGA.2B.319.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	5 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	319	19
LEMO EGA.2B.308.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	10 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	308	8
LEMO EGA.2B.307.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	11 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	307	7
LEMO EGA.2B.306.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	12 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	306	6
LEMO EGA.2B.302.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	25 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	302	2
LEMO EGA.2B.310.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	8 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	310	10
LEMO EGA.2B.302.CLN	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	25 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	302	2	Panel Mount, Through Hole	Solder
LEMO EGA.2B.303.CLL	Bronze	Bulkhead - Rear Side Nut	A	UL94 V-0	59 Áin	1.5 Ám	Chrome	Metal	17 A		Brass	-55 °C	250 °C	Receptacle, Female Sockets	IP50	Push-Pull	Silver	Polyetheretherketone (PEEK)	Gold	Shielded	303
