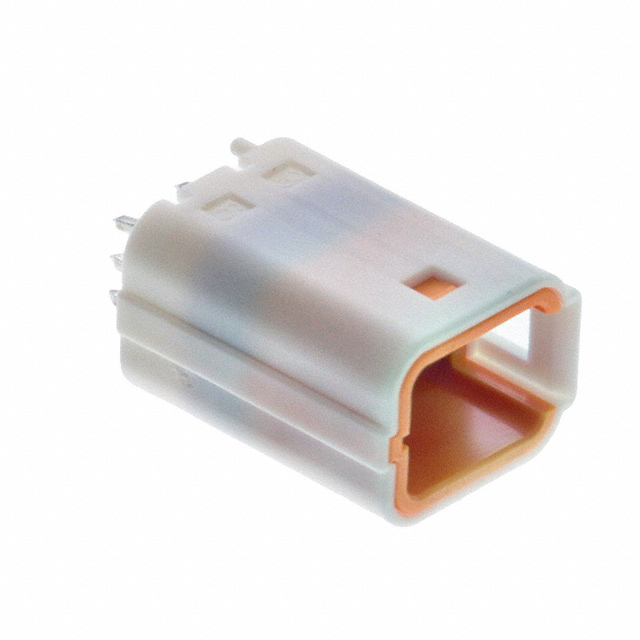

Specification	B06B-JWPF-SK-R

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Dust Tight, Waterproof
Insulation Color	Natural
Insulation Height	0.654 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Height	21 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.157 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	100 VAC

B06B-JWP Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Connector Type	Insulation Color	Contact Finish - Mating	Ingress Protection	Number of Positions	Shrouding	Insulation Height	Features	Mounting Type	Style	Contact Length - Post	Contact Shape	Contact Finish - Post	Number of Rows	Fastening Type	Termination	Row Spacing - Mating	Number of Positions Loaded	Current Rating	Insulation Material	Contact Material	Voltage Rating	Material Flammability Rating	Pitch - Mating	Mated Stacking Height
JST Sales America Inc. B06B-JWPF-SK-R	-55 °C	85 °C	Male Pin	Header	Natural	Tin	Dust Tight Waterproof	6	Shrouded - 4 Wall	0.654 in	Board Guide	Through Hole	Board Cable/Wire	0.13 in	Square	Tin	2	Latch Holder	Kinked Pin Solder	0.157 in	All	3 A	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	100 VAC	UL94 V-0	0.079 in	21 mm
