DW-13-07-T-S-200

Active

Samtec Inc.

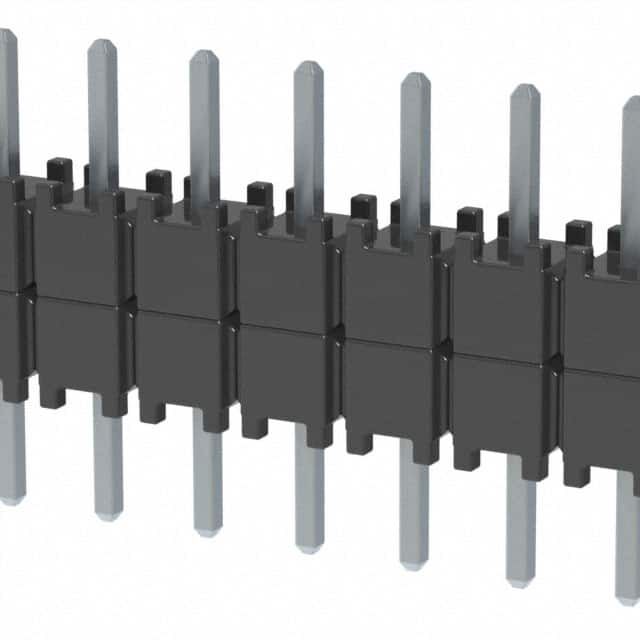

CONN BOARD STACKER HDR 13 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BOARD STACKER HDR 13 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Part	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Color	Length - Stack Height [x]	Length - Stack Height [x]	Termination	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing
Samtec Inc. DW-13-07-L-S-250	0.11 in	2.794 mm	Gold	Black	0.25 in	6.35 mm	Solder	13	2.54 mm	0.1 in	1	0.25 Ám	10 Áin	Through Hole	1.778 mm	0.07 in	10.922 mm	0.43 in
Samtec Inc. DW-13-07-T-D-200	0.11 in	2.794 mm	Tin	Black			Solder	26	2.54 mm	0.1 in	2			Through Hole	3.048 mm	0.12 in	10.922 mm	0.43 in	0.1 in	2.54 mm
Samtec Inc. DW-13-07-S-D-200	0.11 in	2.794 mm	Gold	Black			Solder	26	2.54 mm	0.1 in	2	0.76 µm	30 µin	Through Hole	3.048 mm	0.12 in	10.922 mm	0.43 in	0.1 in	2.54 mm
Samtec Inc. DW-13-07-T-S-250	0.11 in	2.794 mm	Tin	Black	0.25 in	6.35 mm	Solder	13	2.54 mm	0.1 in	1			Through Hole	1.778 mm	0.07 in	10.922 mm	0.43 in
Samtec Inc. DW-13-07-T-D-250	0.11 in	2.794 mm	Tin	Black	0.25 in	6.35 mm	Solder	26	2.54 mm	0.1 in	2			Through Hole	1.778 mm	0.07 in	10.922 mm	0.43 in	0.1 in	2.54 mm
Samtec Inc. DW-13-07-T-S-200	0.11 in	2.794 mm	Tin	Black			Solder	13	2.54 mm	0.1 in	1			Through Hole	3.048 mm	0.12 in	10.922 mm	0.43 in
Samtec Inc. DW-13-07-F-D-205	0.11 in	2.794 mm	Gold	Black	0.205 in	5.207 mm	Solder	26	2.54 mm	0.1 in	2	0.076 Ám	3 Áin	Through Hole	2.921 mm	0.115 in	10.922 mm	0.43 in	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
