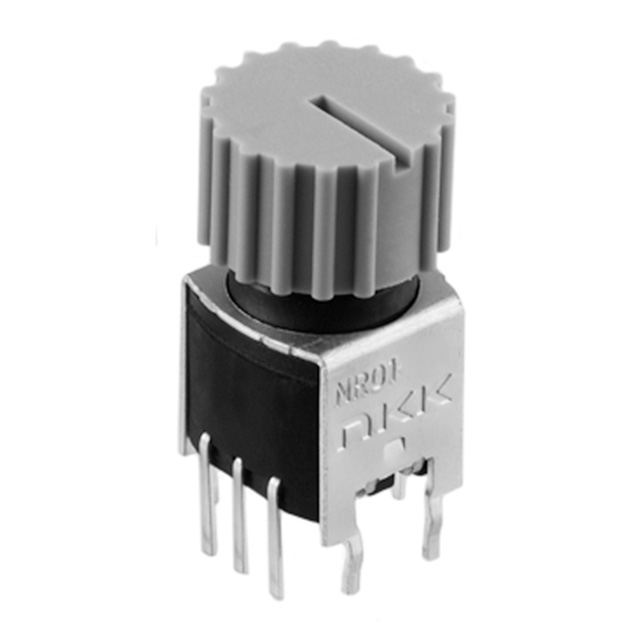

NR01105ANG13-1H

Active

NKK Switches

ROTARY SWITCH, 5 POSITION, 1 POLE, 45 °, 28 V, NR01 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

NR01105ANG13-1H

Active

NKK Switches

ROTARY SWITCH, 5 POSITION, 1 POLE, 45 °, 28 V, NR01 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NR01105ANG13-1H

Actuator Length [x]	7 mm
Actuator Type	Knob
Angle of Throw	45 °
Circuit per Deck	SP5T
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Depth Behind Panel [z]	10.5 mm
Index Stops	Fixed
Mounting Type	Through Hole
Number of Decks [custom]	1
Number of Poles per Deck	1
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

NR0110 Series

Part	Actuator Length [x]	Voltage Rating - AC	Number of Positions	Current Rating (Amps)	Termination Style	Number of Decks [custom]	Index Stops	Actuator Type	Contact Timing	Contact Finish	Circuit per Deck	Mounting Type	Number of Poles per Deck	Contact Material	Depth Behind Panel [z]	Voltage Rating - DC	Angle of Throw
NKK Switches NR01104ANG13-1H	7 mm	28 V	4	0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP4T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01105ANG13-2H	10.8 mm	28 V		0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP5T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01104ANG13		28 V	4	0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP4T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01105ANG13-1A	7 mm	28 V		0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP5T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01103ANG13-2H	10.8 mm	28 V		0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP3T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01104ANG13-1A	7 mm	28 V	4	0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP4T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01105ANG13-1H	7 mm	28 V		0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP5T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01104ANG13-1C	7 mm	28 V	4	0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP4T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01105ANG13		28 V		0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP5T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °
NKK Switches NR01105ANG13-1C	7 mm	28 V		0.4 VA	PC Pin	1	Fixed	Knob	Non-Shorting	Gold	SP5T	Through Hole	1	Beryllium Copper	10.5 mm	28 V	45 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.23
		5	$ 11.38
		10	$ 10.66
		25	$ 9.77
		50	$ 9.15
		100	$ 8.57
		250	$ 7.85
		500	$ 7.34
		1000	$ 6.94
Newark	Each	1	$ 21.76
		5	$ 20.67
		10	$ 19.16
		25	$ 17.48
		50	$ 15.12
		100	$ 14.12
		250	$ 12.86

Description

General part information

NR0110 Series

Rotary Switch 5 Position SP5T 0.4VA (AC/DC) 28 VAC Through Hole
