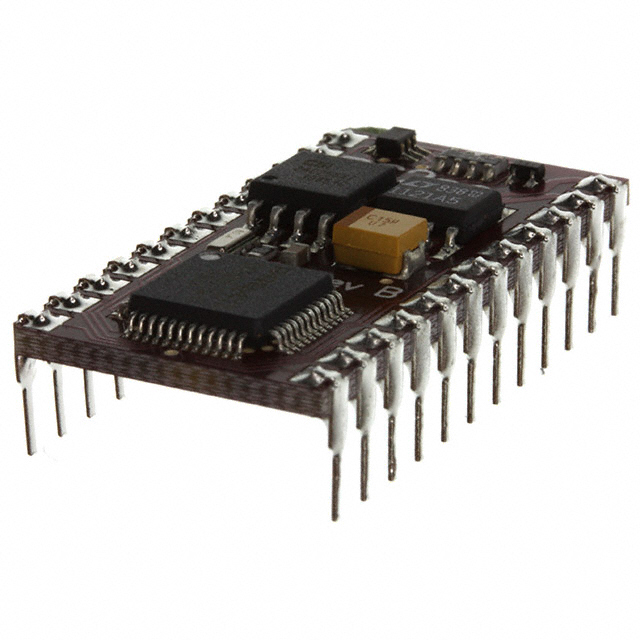

BS2PE
ObsoleteParallax Inc.
IC MODULE SX48AC 8MHZ 38B 32KB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BS2PE
ObsoleteParallax Inc.
IC MODULE SX48AC 8MHZ 38B 32KB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BS2PE | BS2 Series |
|---|---|---|
| Core Processor | SX48AC | SX48AC, PIC16C57C |
| Flash Size | 32 KB | 2 - 32 KB |
| Module/Board Type | MCU Core | MCU Core |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| RAM Size | 38 B | 32 - 38 B |
| Size / Dimension [x] | 30 mm | 30 - 53.3 mm |
| Size / Dimension [x] | 1.2 " | 1.2 - 2.1 " |
| Size / Dimension [y] | 0.6 in | 0.6 in |
| Size / Dimension [y] | 15 mm | 15 - 15.2 mm |
| Speed | 8 MHz | 8 - 32 MHz |
BS2 Series
IC MODULE SX48AC 20MHZ 38B 16KB
| Part | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Module/Board Type | Flash Size | Speed | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | RAM Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
Parallax Inc. BS2P24 | SX48AC | 70 °C | 0 °C | MCU Core | 16 KB | 20 MHz | 30 mm | 0.6 in | 1.2 " | 15 mm | 38 B |
Parallax Inc. BS2-IC | PIC16C57C | 70 °C | 0 °C | MCU Core | 2 KB | 20 MHz | 30 mm | 0.6 in | 1.2 " | 15 mm | 32 B |
Parallax Inc. BS2PE | SX48AC | 70 °C | 0 °C | MCU Core | 32 KB | 8 MHz | 30 mm | 0.6 in | 1.2 " | 15 mm | 38 B |
Parallax Inc. BS2PX24 | SX48AC | 70 °C | 0 °C | MCU Core | 16 KB | 32 MHz | 30 mm | 0.6 in | 1.2 " | 15 mm | 38 B |
Parallax Inc. BS2P40 | SX48AC | 70 °C | 0 °C | MCU Core | 16 KB | 20 MHz | 53.3 mm | 0.6 in | 2.1 in | 15.2 mm | 38 B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 78.00 | |
Description
General part information
BS2 Series
BASIC Stamp® Embedded Module SX48AC 8MHz 38B 32KB EEPROM
Documents
Technical documentation and resources
