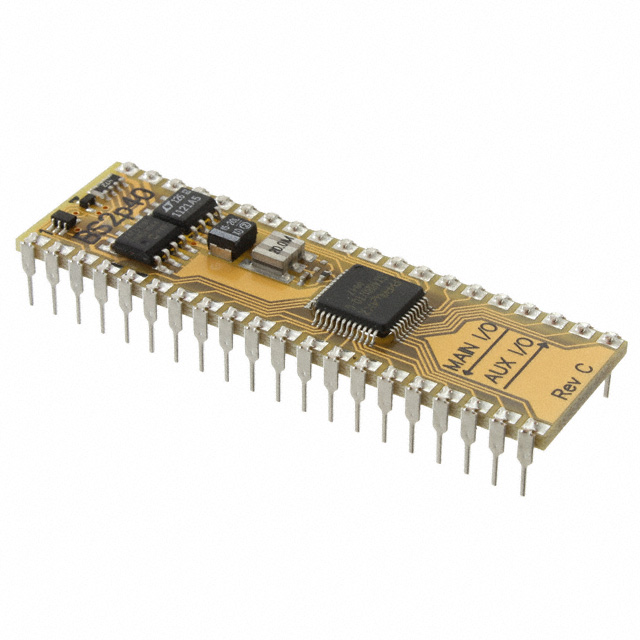

BS2P40

Obsolete

Parallax Inc.

IC MODULE SX48AC 20MHZ 38B 16KB

Search across all available documentation for this part.

Obsolete

Parallax Inc.

IC MODULE SX48AC 20MHZ 38B 16KB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MODULE SX48AC 20MHZ 38B 16KB

Part	Core Processor	Operating Temperature [Max]	Module/Board Type	Flash Size	Speed	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	RAM Size
Parallax Inc. BS2P24	SX48AC	70 °C	MCU Core	16 KB	20 MHz	30 mm	0.6 in	1.2 "	15 mm	38 B
Parallax Inc. BS2-IC	PIC16C57C	70 °C	MCU Core	2 KB	20 MHz	30 mm	0.6 in	1.2 "	15 mm	32 B
Parallax Inc. BS2PE	SX48AC	70 °C	MCU Core	32 KB	8 MHz	30 mm	0.6 in	1.2 "	15 mm	38 B
Parallax Inc. BS2PX24	SX48AC	70 °C	MCU Core	16 KB	32 MHz	30 mm	0.6 in	1.2 "	15 mm	38 B
Parallax Inc. BS2P40	SX48AC	70 °C	MCU Core	16 KB	20 MHz	53.3 mm	0.6 in	2.1 in	15.2 mm	38 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BASIC Stamp® Embedded Module SX48AC 20MHz 38B 16KB EEPROM

Technical documentation and resources

No documents available
