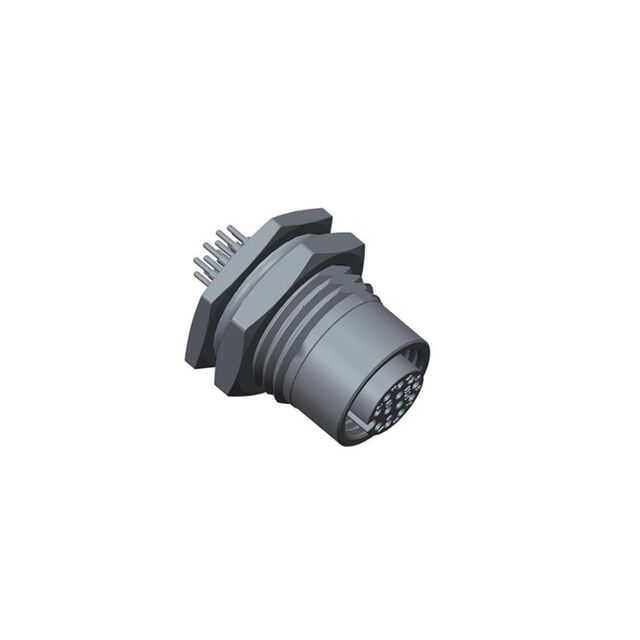

MSAS-06PFFP-SF8002

Active

Amphenol LTW

M SERIES, M12, 2A, 06 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 2A, 06 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MSAS-06PFFP-SF8002

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Features	Ground
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-6
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Mounting Type	Color	Insert Material	Features	Contact Finish - Mating	Current Rating (Amps)	Shell Finish	Shell Size - Insert	Number of Positions	Shielding	Mounting Feature	Termination	Contact Material	Ingress Protection	Orientation	Shell Material	Primary Material
Amphenol LTW MSAS-06PFFP-SF8002	-40 °C	105 ░C	Female Sockets Plug	30 VDC	Panel Mount Through Hole	Silver	Polyamide (PA) Nylon Glass Filled	Ground	Gold	2 A	Nickel	M12-6	6	Shielded	Bulkhead - Front Side Nut	Solder	Copper Alloy	IP68 IP69K	A	Zinc Alloy	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder

Technical documentation and resources

No documents available
