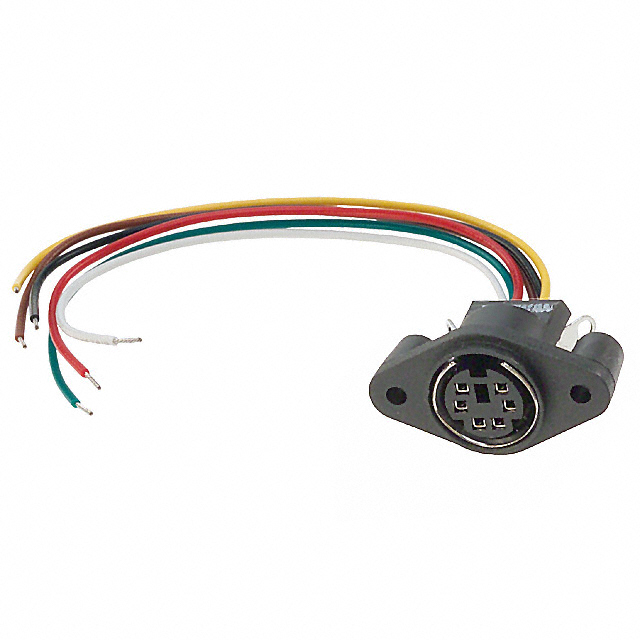

MD-60PL100

Active

CUI Devices

CONN RCPT FMALE MINI DIN 6P WIRE

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE MINI DIN 6P WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MD-60PL100

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Unshielded
Termination	Wire Leads
Voltage Rating	100 VAC, 12 V

Part	Shell Material	Primary Material	Mounting Feature	Orientation	Shell Size - Insert	Fastening Type	Shielding	Contact Material	Number of Positions	Termination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Connector Type	Color	Mounting Type	Contact Finish - Mating	Shell Finish	Insert Material
CUI Devices MD-60PL100	Polybutylene Terephthalate (PBT)	Plastic	Flange	Keyed	Mini DIN	Push-Pull	Unshielded	Phosphor Bronze	6	Wire Leads	Ground	85 °C	-40 °C	UL94 V-0	12 V 100 VAC	Receptacle Female Sockets	Black
CUI Devices MD-60J	Copper	Metal		Keyed	Mini DIN	Push-Pull	Unshielded	Brass	6	Crimp Pin Adapter Available Solder	Ground Strain Relief	105 ░C	-20 C	UL94 V-0	12 V 100 VAC	Receptacle Female Sockets	Black	Free Hanging (In-Line)	Silver	Black Nickel	Polyamide (PA6) Nylon 6 Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Wire Leads
