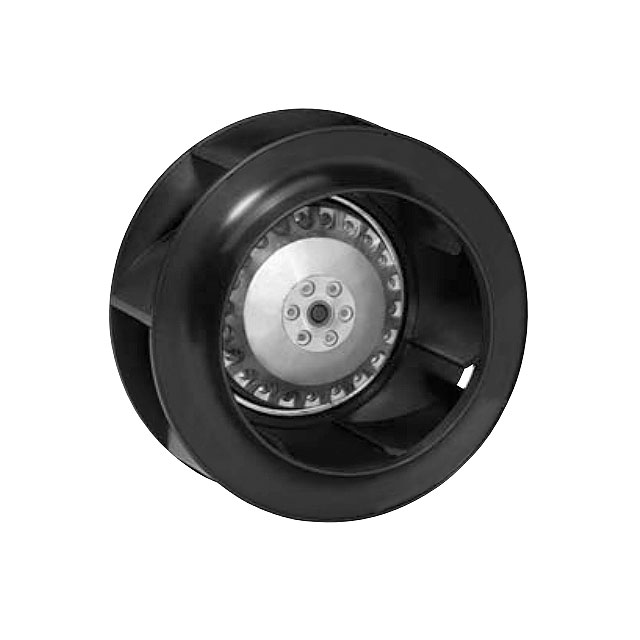

R2S133-AE17-22

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Width [y]	Features	Bearing Type	Termination	Size / Dimension [diameter]	Ingress Protection	Fan Type	RPM	Approval Agency	Material - Blade	Current Rating (Amps)	Voltage - Rated	Air Flow	Air Flow	Operating Temperature	Operating Temperature	Noise
ebm-papst Inc. R2S133-AE77-22	34 W	91 mm	Thermal Overload Protector (TOP)	Ball	2 Wire Leads with Splice Terminals	133.4 mm	IP22	Motorized Impellers	3150 RPM	CE CSA UL	Nylon Polyamide (PA)	0.41 A	115 VAC
ebm-papst Inc. R2S133-AE17-22	45 W	91 mm		Ball	2 Wire Leads	133.4 mm		Motorized Impellers		CSA UL VDE	Polyamide (PA6) Nylon 6		230 VAC	5.26 m³/min	188 CFM	55 °C	131 °F	60 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 91.44

General part information

Fan Motorized Impellers 230VAC Round - 133.4mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads
