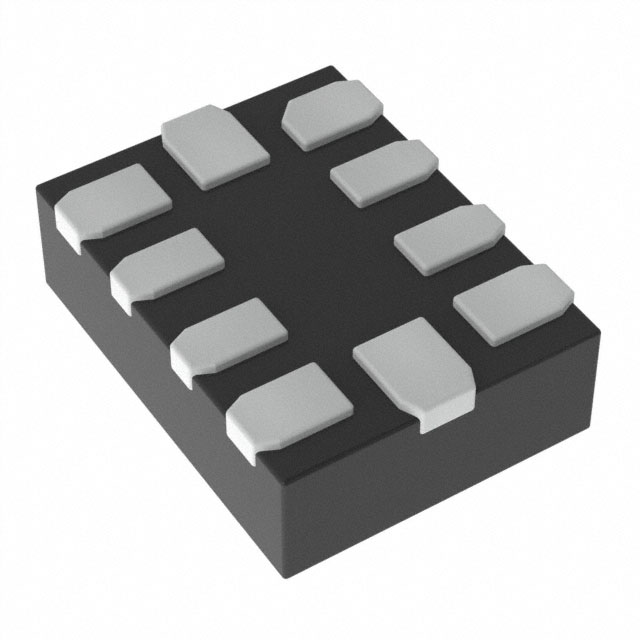

PSMUX136ZUAEX - 10-UQFN

PSMUX136ZUAEX

Active
Diodes Inc

5GHZ HIGH BANDWIDTH, LOW CAPACITANCE SPDT 1:2 MUX/DEMUX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRecommended Soldering TechniquesDatasheet+1
PSMUX136ZUAEX - 10-UQFN

PSMUX136ZUAEX

Active
Diodes Inc

5GHZ HIGH BANDWIDTH, LOW CAPACITANCE SPDT 1:2 MUX/DEMUX

Deep-Dive with AI

DocumentsRecommended Soldering TechniquesDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPSMUX136ZUAEX
-3db Bandwidth5.5 GHz
Channel Capacitance (CS(off), CD(off)) [custom]2.2 pF
Channel Capacitance (CS(off), CD(off)) [custom]2.2 pF
Channel-to-Channel Matching (ΔRon)100 mOhm
Crosstalk-37 dB
Current - Leakage (IS(off)) (Max)2 µA
Mounting TypeSurface Mount
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max) [Max]9 Ohm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / Case10-UFQFN
Supplier Device Package10-UQFN (1.5x2)
Switch CircuitSPDT - NO/NC
Switch Time (Ton, Toff) (Max) [custom]50 ns
Switch Time (Ton, Toff) (Max) [custom]100 µs
Voltage - Supply, Single (V+) [Max]5.5 V
Voltage - Supply, Single (V+) [Min]1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.93
10$ 0.83
25$ 0.79
100$ 0.65
250$ 0.61
500$ 0.54
1000$ 0.42
Digi-Reel® 1$ 0.93
10$ 0.83
25$ 0.79
100$ 0.65
250$ 0.61
500$ 0.54
1000$ 0.42
Tape & Reel (TR) 3000$ 0.40
6000$ 0.38
15000$ 0.36

Description

General part information

PSMUX136 Series

The DIODES PSMUX136 is a 2-to-1 differential channel multiplexer/demultiplexer switch. The PSMUX136 can pass high speed signals with a bandwidth of 5.5GHz to provide excellent signal integrity and the eye diagram opening.
