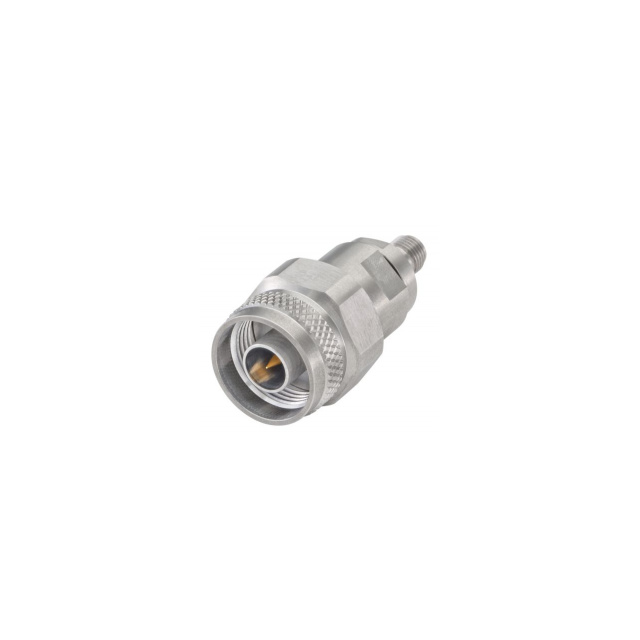

05S132-K00S3

Active

Rosenberger

PRECISION N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	05S132-K00S3

Adapter Series	SMA, RPC-N
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.42 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Insertion Loss	Mounting Type	Dielectric Material	Mating Cycles	Frequency - Max [Max]	Convert To (Adapter End)	Body Material	Conversion Type	Center Contact Material	Center Contact Plating	Adapter Series	Style	Adapter Type	Impedance	Convert From (Adapter End)
Rosenberger 05S132-S00S3	85 °C	-40 °C	Male to Male	0.42 dB	Free Hanging (In-Line)	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	500	18 GHz	Male Pin TNC Plug	Stainless Steel	Between Series	Beryllium Copper Brass	Gold	RJC-N to SMA	Straight	Plug to Plug	50 Ohms	N Plug Male Pin
Rosenberger 05S132-K00S3	85 °C	-40 °C		0.42 dB	Free Hanging (In-Line)	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	500	18 GHz	Female Socket TNC Jack	Stainless Steel	Between Series	Beryllium Copper Brass	Gold	RPC-N SMA	Straight	Plug to Jack	50 Ohms	N Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 225.19

General part information

Adapter Coaxial Connector N Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
