WAVE-45-12

Active

Wakefield-Vette

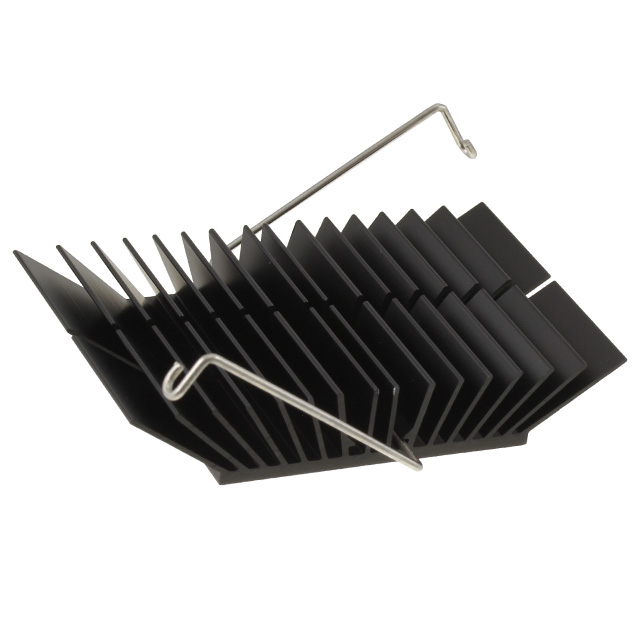

ANCHOR HEATSINK 45X45X12MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ANCHOR HEATSINK 45X45X12MM

Technical Specifications

Parameters and characteristics for this part

Specification	WAVE-45-12

Attachment Method	Clip
Fin Height [z]	0.472 in
Fin Height [z]	12 mm
Length	45 mm
Length [x]	1.772 "
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	200 LFM, 2.96 °C/W
Type	Board Level
Width	45 mm
Width [x]	1.772 in

ANCHOR HEATSINK 45X45X12MM

Part	Length [x]	Length	Type	Material Finish	Thermal Resistance @ Forced Air Flow	Shape	Fin Height [z]	Fin Height [z]	Material	Package Cooled	Attachment Method	Width	Width [x]
Wakefield-Vette WAVE-45-12	1.772 "	45 mm	Board Level	Black Anodized	2.96 °C/W, 200 LFM	Angled Fins, Square	0.472 in	12 mm	Aluminum Alloy	BGA	Clip	45 mm	1.772 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Alloy Board Level
