90202/68

Active

3M (TC)

80001215625 90202/68-100 =UL/68/CAB/TPE/RC/STR/30AWG/.025/100

Search across all available documentation for this part.

Active

3M (TC)

80001215625 90202/68-100 =UL/68/CAB/TPE/RC/STR/30AWG/.025/100

Technical Specifications

Parameters and characteristics for this part

Specification	90202/68

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	68
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL E118773
Ribbon Thickness	1.52 mm
Ribbon Thickness	0.06 "
Ribbon Width [custom]	44.2 mm
Ribbon Width [custom]	1.74 "
Shielding	Shielded
Voltage	150 V
Wire Gauge	30 AWG

Part	Pitch [x]	Pitch [x]	Voltage	Conductor Material	Cable Type	Length [x]	Length [x]	Number of Conductors	Insulation Resistance	Jacket (Insulation) Material	Ribbon Width [x]	Ribbon Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	First Conductor Mark	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Thickness	Ribbon Thickness	Jacket Color	Shielding	Ratings	Wire Gauge	Ribbon Width	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) 90202/60	0.64 mm	0.025 in	150 V	Copper Tinned	Flat Cable Flat Jacket	100 ft	30.48 m	60	10 GOhm	Thermoplastic Elastomer (TPE)	1.54 in	39.11 mm	-20 C	105 ░C	Blue	7	38 AWG	1.52 mm	0.06 "	Gray	Shielded	UL E118773	30 AWG
3M (TC) 90202/26	0.64 mm	0.025 in	150 V	Copper Tinned	Flat Cable Flat Jacket	100 ft	30.48 m	26	10 GOhm	Thermoplastic Elastomer (TPE)			-20 C	105 ░C	Blue	7	38 AWG	1.52 mm	0.06 "	Gray	Shielded	UL E118773	30 AWG	0.69 in	17.53 mm
3M (TC) 90202/40 100	0.64 mm	0.025 in	150 V	Copper Tinned	Flat Cable Flat Jacket	100 ft	30.48 m	40	10 GOhm	Thermoplastic Elastomer (TPE)			-20 C	105 ░C	Blue	7	38 AWG	1.52 mm	0.06 "	Gray	Shielded	UL E118773	30 AWG	1.04 in	26.42 mm
3M (TC) 90202/80 100	0.64 mm	0.025 in	150 V	Copper Tinned	Flat Cable Flat Jacket	100 ft	30.48 m	80	10 GOhm	Thermoplastic Elastomer (TPE)			-20 C	105 ░C	Blue	7	38 AWG	1.52 mm	0.06 "	Gray	Shielded	UL E118773	30 AWG	2.04 in	51.81 mm
3M (TC) 90202/68	0.64 mm	0.025 in	150 V	Copper Tinned	Flat Cable Flat Jacket	100 ft	30.48 m	68	10 GOhm	Thermoplastic Elastomer (TPE)			-20 C	105 ░C	Blue	7	38 AWG	1.52 mm	0.06 "	Gray	Shielded	UL E118773	30 AWG			44.2 mm	1.74 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

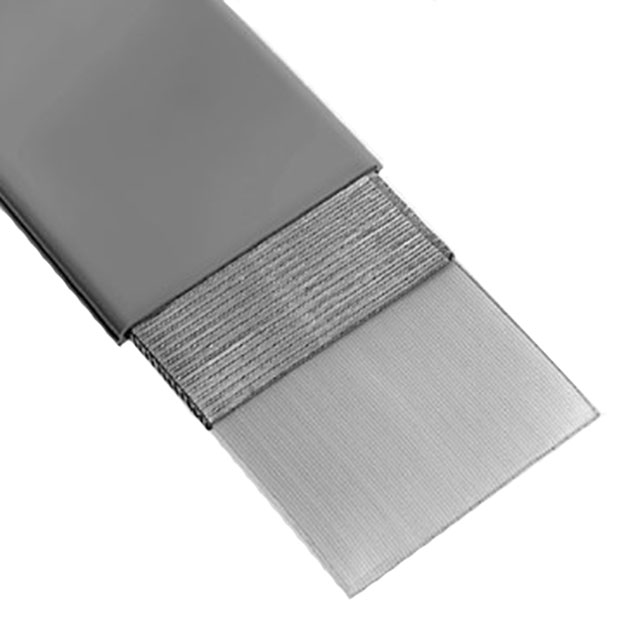

Flat Ribbon Cable Gray 68 Conductors 0.025" (0.64mm) Flat Cable, Flat Jacket 100.0' (30.48m)
