LMR-200-LLPX

Active

Amphenol Times Microwave Systems

LMR-200 LOW LOSS PLENUM, LISTED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

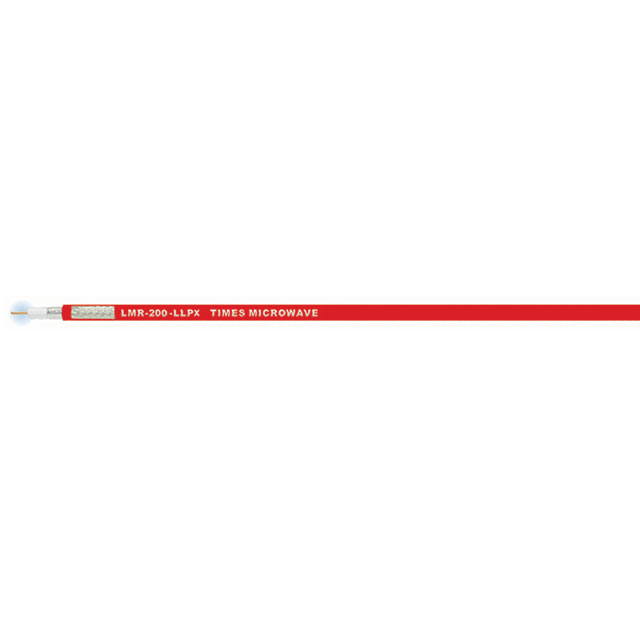

LMR-200-LLPX

Active

Amphenol Times Microwave Systems

LMR-200 LOW LOSS PLENUM, LISTED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.24

Description

General part information

LMR-200 Series

Coaxial - Plenum Cable 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-200-LLPX	LMR-200 Series

Cable Group	-	LMR-200
Cable Type	Coaxial - Plenum	Coaxial, Coaxial - Plenum, Coaxial - Riser
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter	3 mm	3 mm
Dielectric Diameter	0.118 in	0.118 in
Dielectric Diameter	-	2.95 mm
Dielectric Diameter	-	0.116 in
Dielectric Material	Polytetrafluoroethylene (PTFE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	-	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	4.45 mm	4.45 - 4.95 mm
Jacket (Insulation) Diameter [diameter]	0.175 in	0.175 - 0.195 in
Jacket (Insulation) Material	Fluoropolymer, Plenum	Polyethylene (PE), Poly-Vinyl Chloride (PVC), Polyethylene (PE), Riser, Low Smoke Zero Halogen (LSZH), Fluoropolymer, Plenum, Poly-Vinyl Chloride (PVC), Riser, Thermoplastic Elastomer (TPE)
Jacket Color	Red	Black, Red
Length	-	152.4 m
Length	-	6000 in
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid, Foil
Usage	-	Antenna
VoP, Velocity of Propagation	76	76 - 83

LMR-200 Series

CABLE COAXIAL LMR-200 PER FT

Part	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Shield Material	Impedance	Cable Type	VoP, Velocity of Propagation	Conductor Material	Jacket Color	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Group	Usage	Length	Length	Features	Dielectric Diameter	Dielectric Diameter
Amphenol Times Microwave Systems LMR-200	Polyethylene (PE)	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm	LMR-200
Amphenol Times Microwave Systems LMR-200-MA	Poly-Vinyl Chloride (PVC)	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm		Antenna
Amphenol Times Microwave Systems LMR-200-FR	Polyethylene (PE), Riser	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm			152.4 m	6000 in	Fire Retardant
Amphenol Times Microwave Systems LMR-200-DB	Polyethylene (PE)	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm					Direct Burial, Watertight
Amphenol Times Microwave Systems LMR-200-75	Polyethylene (PE)	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	75 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid, Foil	0.195 in	4.95 mm
Amphenol Times Microwave Systems LMR-200-LSZH	Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm
Amphenol Times Microwave Systems LMR-200-PVC-W	Poly-Vinyl Chloride (PVC)	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare		Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm
Amphenol Times Microwave Systems LMR-200-LLPX	Fluoropolymer, Plenum	125 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial - Plenum	76	Copper, Bare	Red	Polytetrafluoroethylene (PTFE)			Braid	0.175 in	4.45 mm						3 mm	0.118 in
Amphenol Times Microwave Systems LMR-200-FR-PVC	Poly-Vinyl Chloride (PVC), Riser	85 °C	-40 °C	Solid	Aluminum, Copper, Tinned	50 Ohms	Coaxial - Riser	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm					Fire Retardant
Amphenol Times Microwave Systems LMR-200-UF	Thermoplastic Elastomer (TPE)	85 °C	-40 °C		Aluminum, Copper, Tinned	50 Ohms	Coaxial	83	Copper, Bare	Black	Foam Polyethylene (FPE)	2.95 mm	0.116 in	Braid	0.195 in	4.95 mm
