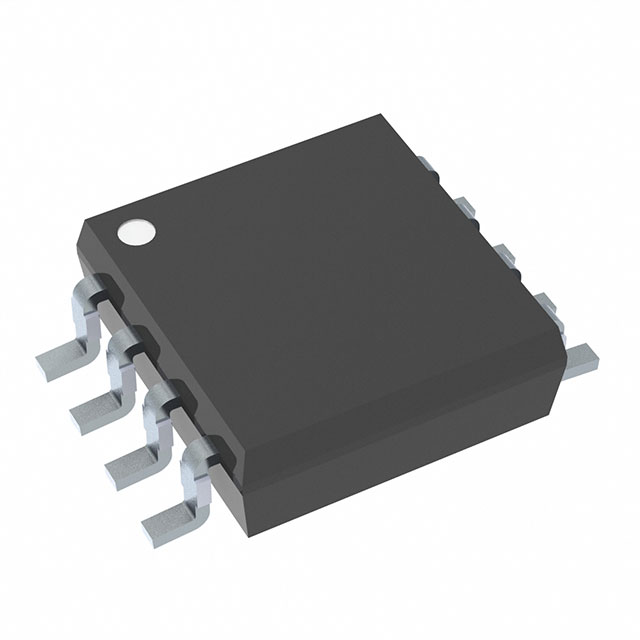

NJM2746RB1-TE1
ActiveNisshinbo Micro Devices Inc
IC OPAMP GP 2 CIRCUIT 8TVSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJM2746RB1-TE1
ActiveNisshinbo Micro Devices Inc
IC OPAMP GP 2 CIRCUIT 8TVSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2746RB1-TE1 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 100 nA |
| Current - Supply | 4 mA |
| Gain Bandwidth Product | 10 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Package / Case | 8-VSSOP, 8-MSOP |
| Slew Rate | 3.5 V/µs |
| Supplier Device Package | 8-TVSP |
| Voltage - Input Offset | 1 mV |
| Voltage - Supply Span (Max) [Max] | 14 V |
| Voltage - Supply Span (Min) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.22 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 1.22 | ||
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.56 | |||
| Tape & Reel (TR) | 2000 | $ 0.52 | ||
| 6000 | $ 0.49 | |||
| 10000 | $ 0.47 | |||
Description
General part information
NJM2746 Series
General Purpose Amplifier 2 Circuit Rail-to-Rail 8-TVSP
