CDB4350

Obsolete

Cirrus Logic Inc.

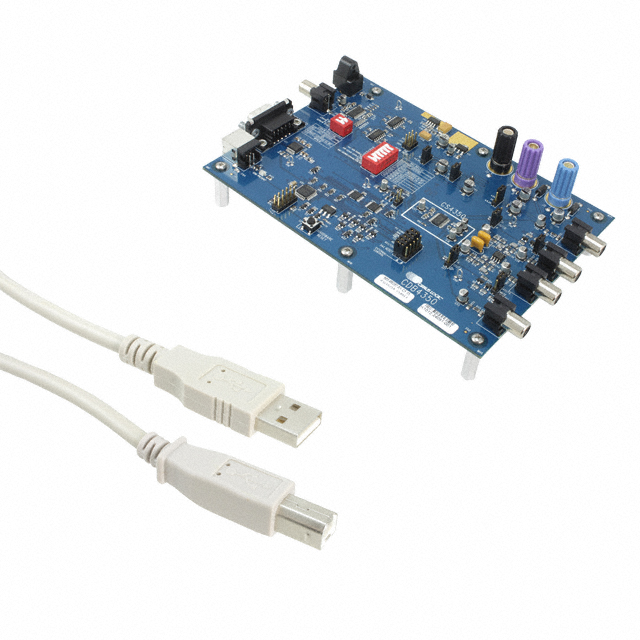

EVAL BOARD FOR CS4350

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS4350

Technical Specifications

Parameters and characteristics for this part

Part	Number of Channels [custom]	Resolution (Bits)	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Type	Voltage Supply Source	Sampling Rate (Per Second)	Package / Case	Contents	Supplied Contents	Number of Bits	Utilized IC / Part	Number of DAC's	DAC Type	Package / Case
Cirrus Logic Inc. CS4350-CNZ	2	24 b	Surface Mount	24-QFN (4x4)	85 °C	-40 °C	SPI	Audio DAC	Single Supply	192k	24-VFQFN Exposed Pad
Cirrus Logic Inc. CS4350-CNZR	2	24 b	Surface Mount	24-QFN (4x4)	85 °C	-40 °C	SPI	Audio DAC	Single Supply	192k	24-VFQFN Exposed Pad
Cirrus Logic Inc. CDB4350							Serial			192k		Board(s)	Board(s)	24	CS4350	2	Voltage
Cirrus Logic Inc. CS4350-DZZ	2	24 b	Surface Mount	24-TSSOP	105 ░C	-40 °C	SPI	Audio DAC	Single Supply	192k	24-TSSOP							0.173 in 4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 765.60

General part information

CS4350 - 24 Bit 192k Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
