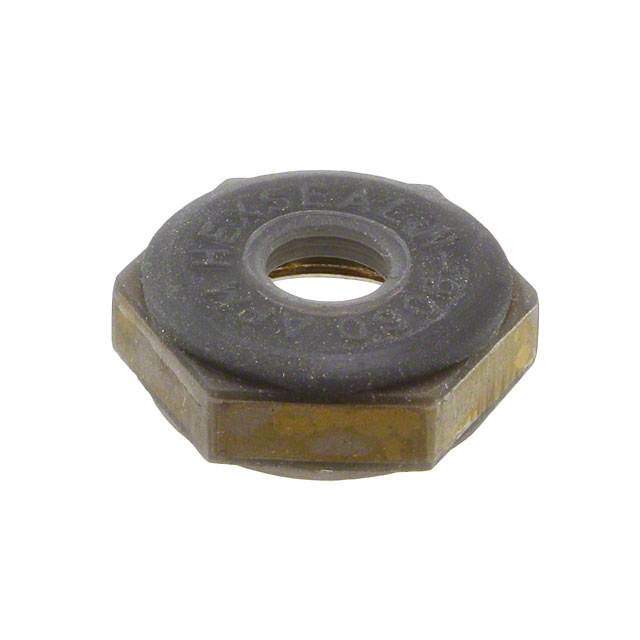

N9060X1/4 2

Active

APM HEXSEAL

ROTARY SHAFT SEAL GRAY

Search across all available documentation for this part.

Active

APM HEXSEAL

ROTARY SHAFT SEAL GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	N9060X1/4 2

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Color	Gray
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.219 in
Size / Dimension [z]	5.56 mm
Thread Size	15/32-32 NS-2B
Type	Rotary Shaft Seal

ROTARY SHAFT SEAL GRAY

Part	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Color	Actuator Diameter	Actuator Diameter [diameter]	Mounting Feature	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Type	Material
APM HEXSEAL N9060X1/4 2	IP66/IP68	15/32-32 NS-2B	204 °C	-70 °C	Gray	6.35 mm	0.25 in	Front of Panel	Multiple Series	0.219 in	5.56 mm	Rotary Shaft Seal	Silicone Rubber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
