Specification	5111595-3

Board-Side Pitch	0.1 in
Cable Pitch	0.05 in, 0.025 in
Cable Termination	IDC
Color	Black
Connector Type	Ribbon Cable
Contact Finish	Tin
Contact Finish Thickness	100 µin
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	4
Row Spacing	0.075 in
Wire Gauge (AWG) (Max)	32 AWG
Wire Gauge (AWG) (Min)	30 AWG

5111595 Series

Part	Cable Termination	Connector Type	Mounting Type	Cable Pitch	Board-Side Pitch	Contact Finish Thickness	Row Spacing	Color	Features	Number of Rows	Contact Finish	Number of Positions	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Positions Loaded
TE Connectivity AMP Connectors 5111595-4	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	20	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 5111595-1	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	10	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 2-5111595-1	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	68	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 5111595-8	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	34	32 AWG	30 AWG	All

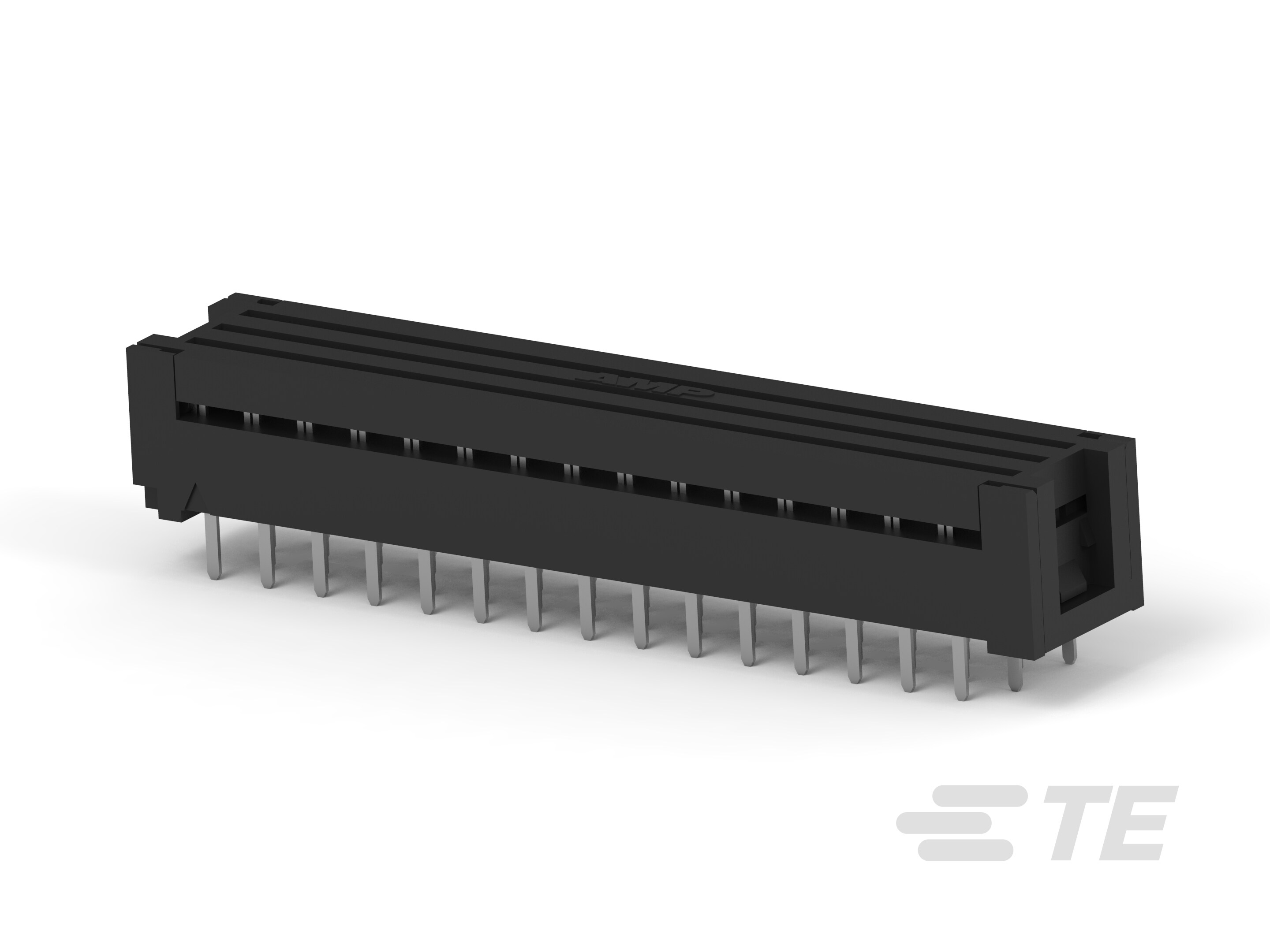

TE Connectivity AMP Connectors 1-5111595-2	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	60	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 5111595-6	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	26	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 2-5111595-2	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	80	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 5111595-3	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	16	32 AWG	30 AWG	All
TE Connectivity AMP Connectors 1-5111595-7	IDC	Ribbon Cable	Through Hole	0.025 in 0.05 in	0.1 in	100 µin	0.075 in	Black	Feed Through	4	Tin	46	32 AWG	30 AWG	All
